You should choose electric valve actuators based on what your application needs first. Picking the right actuator features helps you control valves confidently. Think about torque, speed, load, compatibility, environment, reliability, safety, and automation. Today, fast growth in industrial automation and smart manufacturing increases the need for electric valve actuators. Many industries are moving from manual controls to automated systems. Investments in renewable energy and water treatment also help grow the market.
Pick electric valve actuators based on what your application needs. Think about things like torque, speed, and compatibility to get the best results.
Know the difference between rotary and linear actuators. Use rotary ones for quick on/off actions. Use linear ones for precise flow control.
Check environmental ratings and safety certifications before installing. Make sure actuators can handle heat, moisture, and hazards.
Use smart actuators for automation and remote control. These help improve efficiency and give real-time updates on valve performance.
Follow a checklist when choosing and installing. This helps prevent mistakes and keeps your system safe and working well.
Electric valve actuators use electricity to open and close valves. They help control flow in pipes, water systems, and factories. These devices come in many shapes and sizes. Some move straight, and some turn in circles. Electric rotary valve actuators spin the valve to open or close it. You see these actuators in lots of industries. They give you exact control and work well with digital systems.
Most electric valve actuators use less energy than hydraulic or pneumatic systems. They only use power when moving the valve. This makes them efficient and saves money for many uses. You can count on them for accurate and repeatable valve movement.
Electric valve actuators turn electrical energy into movement. They use a motor and a gearbox to make the valve move. Here is how the main parts work together:
The motor changes electricity into motion.
The gearbox makes the force or speed stronger.
Limit switches stop the actuator at the right spot.
Positioners help control how much the valve opens.
Control logic links the actuator to your control system.
Fail-safe features move the valve to a safe place if power fails.
These features give you safe and reliable valve control. The actuator makes enough force to move the valve’s closing part. This lets you manage flow just how you want. Modern electric valve actuators also help with automation and remote monitoring. This keeps your system working well.
There are different kinds of electric valve actuators. Each one moves in a special way and is good for certain jobs. Knowing how each works helps you pick the best one for your valve system.
Electric rotary valve actuators use a motor that spins to turn a valve. They can turn up to 360 degrees. These are good for quarter-turn valves like ball or butterfly valves. They work best for turning valves on or off. You see them in water plants, factories, and HVAC systems. Rotary motion makes the valve move strongly and reliably.
Tip: Pick a rotary valve actuator when you want quick and simple open or close actions.
Linear electric valve actuators move a valve in a straight line. They push or pull the valve stem to open or close it. These are used for globe, gate, or diaphragm valves. Linear actuators give you careful control over flow. They are good when you need to make small adjustments to the valve.
Here is a quick comparison:
Actuator Type | Motion Type | Uses |
|---|---|---|
Linear Actuator | Straight-line move | Opening doors, changing height, pushing or pulling loads |
Rotary Actuator | Spinning motion | Turning valves, moving sensors, driving wheels |
Smart actuators help connect your valve system to automation. In 2026, you need actuators that work with digital control systems. These smart actuators are easy to set up with DCS and PLC systems. They give you real-time updates on the valve’s condition. You can see the valve position, how many times it has moved, and find problems early. Smart actuators save energy and reduce downtime. They are perfect for modern factories and smart plants.
Note: Smart actuators support IIoT, so you can monitor and control valves from anywhere.
Some rotary actuators have special features. You might find explosion-proof ones for dangerous places. Others have extra sealing for wet or dusty areas. These special rotary actuators help you do tough jobs. Always match the actuator features to your valve and environment.
You can pick the right electric valve actuators by understanding how each type works and where it fits best.
First, you need to check how much torque your job needs. Torque is the force that turns or moves the valve. If you use a rotary valve actuator, match its torque to the valve. If the torque is too low, the actuator cannot move the valve. If the torque is too high, it can hurt the valve or make it wear out faster.
Electric actuators use motors with 110V, 220V, or 380V for AC. They also use 12V or 24V for DC.
A 0.5 kW AC motor with a 50:1 worm gearbox can give 250–300 N·m torque for quarter-turn valves.
You also need to think about the load. The load is the force needed to beat friction, pressure, and stuff inside the valve. Always look at the valve maker’s data for torque and load numbers. This helps you pick the right rotary valve actuator for good control.
Tip: Add a safety margin to your torque math. This helps your actuator work if pressure or buildup changes.
Make sure your actuator fits your valve. Compatibility helps things work well and makes installation easy. Many rotary actuators have standard mounting pads. These pads let you put the actuator on the valve fast and with fewer mistakes.
Standard | Description |
|---|---|
ISA-96 Series of Standards | Makes words for valve actuators the same, so design is better. |
ANSI/ISA-96.02.01-2024 | Gives advice for picking electric valve actuators for good performance. |
ISO 5211 | Standard mounting pads for rotary actuators, so you can install them easily. |
Always check if your valve and actuator follow these standards. This makes it easy to swap parts or upgrade later.
Speed is important if you need a quick response. Actuation time is how long it takes to open or close the valve. Some rotary valve actuators move fast for emergencies. Others move slow for careful flow control. Pick the speed that matches your process.
If you need to be exact, get an actuator with adjustable speed. This lets you control the valve better. Fast actuation is good for safety in important systems. Slow movement is better when you need small changes.
Outside and tough places can change how actuators work. You need to keep your actuator safe from heat, cold, water, and dust. Water can get inside and break things. Look for actuators with sealed cases.
Temperature, humidity, and case ratings change how well actuators work.
Sealed actuators stop water from getting in, even if it gets hot or cold.
Actuators should meet IP66/67 or NEMA 4X to handle tough places like wet, humid, or sunny spots.
Safety matters, especially in dangerous places. Some rotary actuators need explosion-proof cases. These stop sparks or heat from starting fires or blasts.
Certification Type | Description |
|---|---|
ATEX | Needed for places with gas or dust that can explode. |
NEMA 7/9 | Cases for dangerous spots, keep out explosions. |
IECEx | World certification for explosive places. |
UL1203/FM | U.S. rules for explosion-proof gear in risky areas. |
Explosion-proof actuators have strong cases. These stop any blast inside from getting out. Always check for the right safety labels before you put in your actuator.
Pick the right power for your actuator. Most electric valve actuators use AC or DC motors. The most common voltages are:
Voltage | Type |
|---|---|
110V | AC |
220V | AC |
380V | AC |
12V | DC |
24V | DC |
You can use single-phase or three-phase AC, or DC motors. Many actuators use 115 VAC power. Always check what power you have before you buy.
Battery backup keeps your valves working if the power goes out. These systems let the actuator move the valve to a safe spot if power fails. This fail-safe is important for safety and automation. It stops unsafe flow and keeps things under control until power comes back.
Reliability is very important for electric valve actuators, especially in big systems. You want your actuator to work every time. Look for features that make actuators more reliable, like:
Metric | Description |
|---|---|
Precision | Encoders and feedback help control the valve’s position. |
Repeatability | Doing the same thing every time makes products better. |
Energy Efficiency | Uses power mostly when moving, so it saves energy. |
Integration Capabilities | Works with many systems for easy maintenance. |
Maintenance Requirements | Telemetry helps you fix things before they break. |
The material of your valve and actuator matters too. Stainless steel does not rust as fast as carbon steel. This means fewer problems and longer life, especially in hard places. You should also check things like seat leakage and pressure drop. Predictive maintenance tools help you find problems early and stop downtime.
Note: Using predictive maintenance and the right materials makes actuators last longer and cost less.
If you follow these steps, you can pick the best electric valve actuators for your needs. You will get better control, more safety, and better performance in your systems.
You need to check if your electric valve actuators work with your control system. This helps you get better control and makes your equipment work well. Most new actuators can connect right to control systems like PLCs and DCS. You can use common standards to link these actuators to automation systems. Many actuators use IO-Link and Ethernet to talk to other devices. These standards let you add up to 500 modules on one bus. Smart connect software helps you set up actuators fast.
Feature | Description |
|---|---|
Communication Standards | Works with IO-Link and Ethernet |
Integration | Connects directly to EtherCAT, PROFIBUS, and Ethernet networks |
Bus Cycle Times | Can work in real time with up to 250 µs |
Module Capacity | Lets you use up to 500 modules on one bus |
Software | Smart connect software makes setup easy |
AP Communication Technology | Links host PLC with IO-Link devices, digital and analog signals, and sends data to the cloud |
Unique Feature | Can connect Festo valve manifolds directly |
When you pick actuators with these features, it is easier to connect them to control systems. This helps your system work better and faster.
You can link electric valve actuators to the Internet of Things (IoT) with different protocols. These help you watch and control valves from anywhere. Modbus RTU is good for long distances in factories. Modbus TCP uses Ethernet and is faster for new automation. Both give you quick and safe data transfer.
Protocol Type | Description | Use Case |
|---|---|---|
Modbus RTU | A serial protocol using binary data frames, good for small devices. | Used in factories to connect many actuators over long wires. |
Modbus TCP | A protocol that works over Ethernet, so it is faster. | Good for IoT jobs that need fast and easy communication. |
Pick the protocol that fits your system and helps you reach your automation goals.
You have to follow important rules when you put in electric valve actuators. These rules keep your system safe and help everything work together. Here are some main points:
Communication and interface rules like Modbus, IEC 61158, and ISA help with both analog and digital links.
Mechanical rules like ISO 5211 make it easy to mount actuators from different brands.
Safety and hazardous area ratings like ATEX, IECEx, and UL1203 keep your gear safe in risky places.
Environmental ratings like IP67 stop dust and water from getting in. Materials like 316L stainless steel help stop rust.
Some rules are just for certain jobs, like AWWA C542 for water plants and IEEE rules for power plants.
Following these rules helps your system work better, stay safe, and last longer.
Electric valve actuators give you many good things. They let you control valves very accurately. You can set the valve just where you want it. This is great for jobs that need careful flow control.
Electric actuators work with Modbus and Profibus. You can connect them to your control system without trouble.
They use less energy than pneumatic or hydraulic actuators. In HVAC systems, you can save up to 28% on energy. You also spend about 22% less on running costs.
Many smart buildings use IoT-enabled actuators now. About 36% of these buildings use them for climate control.
You can program electric actuators for smart automation. This helps you run your system better and save money.
Maintenance is easy. Electric actuators do not need much care. You may only need to clean them sometimes. Some places say they spend 60-80% less time on maintenance after switching from pneumatic to electric actuators.
Pneumatic systems need checks for leaks and worn seals. Electric actuators do not have these problems. You spend less time and money on repairs.
Tip: Electric actuators help you save energy and lower labor costs over time.
You should know about some problems with electric valve actuators. These can make your system work less well if you do not plan.
Sizing problems are common. If you pick the wrong size, the actuator may not move the valve right.
Stem lubrication can be a problem. If you do not keep it oiled, the actuator may not work well.
Electric actuators need the right power supply. If you lose power and have no backup, the valve may get stuck.
Some electric actuators cost more at first than pneumatic ones. You may need to pay more when you buy them.
Note: You can stop most problems by checking sizing, keeping parts clean, and making sure you have backup power.
You can use a checklist to help pick the right electric valve actuator. This helps you not make mistakes and keeps your system safe. Here is a table you can use for chemical plants, but it works for other jobs too:
Selection Item | What to Confirm | Why It Matters |
|---|---|---|
Medium | Chemical name and composition | Picks the right valve body, seat, and seal |
Concentration | Normal and maximum concentration | Checks if materials stay safe at all strengths |
Temperature | Normal and maximum temperature | Protects seat life and actuator from damage |
Pressure | Operating and design pressure | Makes sure valve and actuator can handle force |
Valve Size | DN/NPS size and connection type | Matches torque, flow, and installation needs |
Valve Material | Body, ball, stem, seat, seal | Stops leaks and fights corrosion |
Actuator Torque | Breakaway torque and safety margin | Prevents overload or stuck valves |
Voltage | AC/DC voltage and phase | Matches your power supply |
Control Signal | On-off, modulating, feedback signal | Works with your PLC or control panel |
Environment | Indoor, outdoor, washdown, corrosive vapor | Picks the right enclosure and protection |
Tip: Check every item before you buy or put in an actuator. This helps your system work well.
You need to install electric valve actuators the right way. First, turn the ball valve to a spot you know, usually all the way closed. Line up the actuator output drive with the valve stem. Put the actuator so the ISO 5211 holes match the valve pad. Put in the bolts and tighten them with your hand first. Use the right bolt size and torque for your actuator:

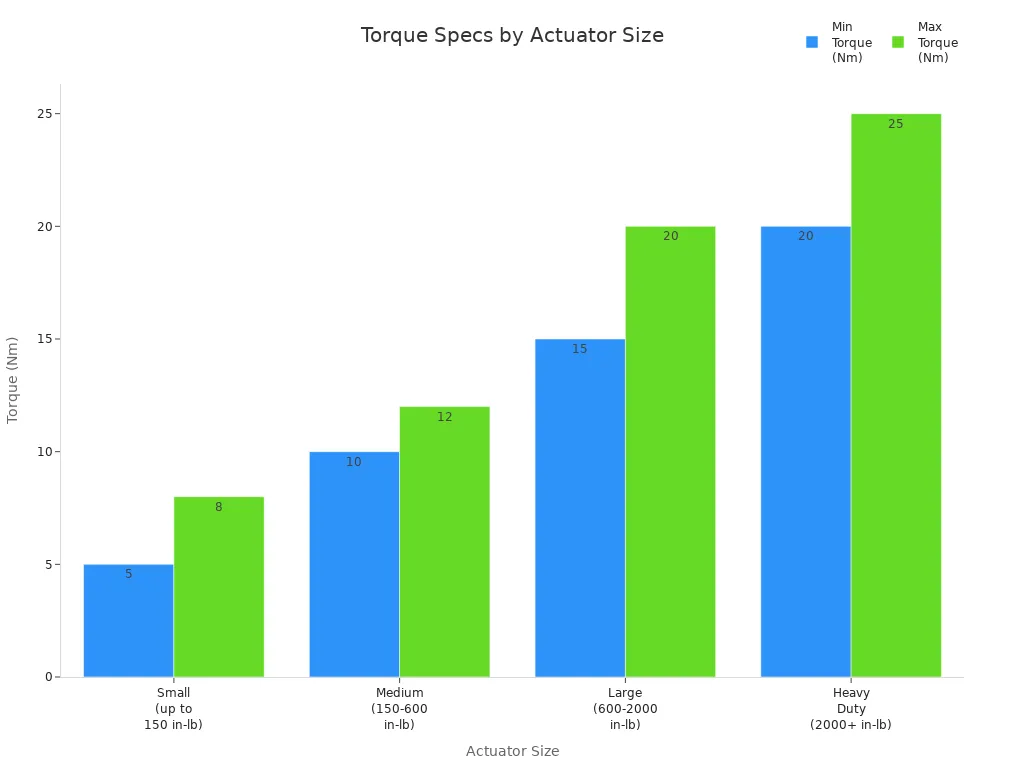

Actuator Size | Mounting Bolt Size | Torque Specification |
|---|---|---|
Small (up to 150 in-lb) | M6 | 5-8 Nm |
Medium (150-600 in-lb) | M8 | 10-12 Nm |
Large (600-2000 in-lb) | M10 | 15-20 Nm |
Heavy Duty (2000+ in-lb) | M12 | 20-25 Nm |
Before you hook up the wires, test the actuator by hand. Move it and see if it feels smooth. Watch the position indicator and listen for strange sounds. Make sure the limit switches work right.
If the actuator does not work, try these steps:
Look for things blocking the valve, like small bits of dirt.
Check if the power supply is steady and the right voltage.
Test the wires and look for signs of heat damage.
Note: Most problems come from dirt in the valve or bad power. Checking often can stop more than half of failures.
You can pick the right electric valve actuator by using easy steps. First, decide if you need rotary or linear motion. Next, check how much force and speed you need. Make sure the actuator fits your system’s power needs. Always match the actuator’s features to your system.
"It is very important to know what your system needs when picking Multi Turn Actuators."
Use a checklist for every project you do. If you need more help, ask experts or use these tools:
Guides that show differences in torque, failsafe choices, and how much maintenance costs
Delco Valves engineering team can help with P&ID checks and give advice
Key Takeaway | Value |
|---|---|
Largest market share | Rotary Electric Actuators (58.3%) |
Market growth driven by | Automation, renewables, smart water |
Rotary actuators spin valves to open or close them. Linear actuators move valves straight up or down. Use rotary actuators for ball or butterfly valves. Pick linear actuators for gate or globe valves.
Look at your valve’s datasheet for breakaway torque. Add about 20–30% more as a safety margin. This helps the actuator work if there is extra pressure or buildup. You can ask your valve supplier for advice.
Yes, you can use them outside. Choose actuators with waterproof or weatherproof ratings like IP66 or NEMA 4X. These ratings keep out rain, dust, and sun. Always check the label before you install it.
You should check actuators for dirt and loose wires. Make sure they move smoothly. Clean them and test the limit switches. Smart actuators can tell you when they need service. Checking often helps stop failures.
First, check the power and the wires. Look for dirt or things stuck in the valve. Try moving the actuator by hand. If it still does not work, call your supplier or a technician.
