BHS Series

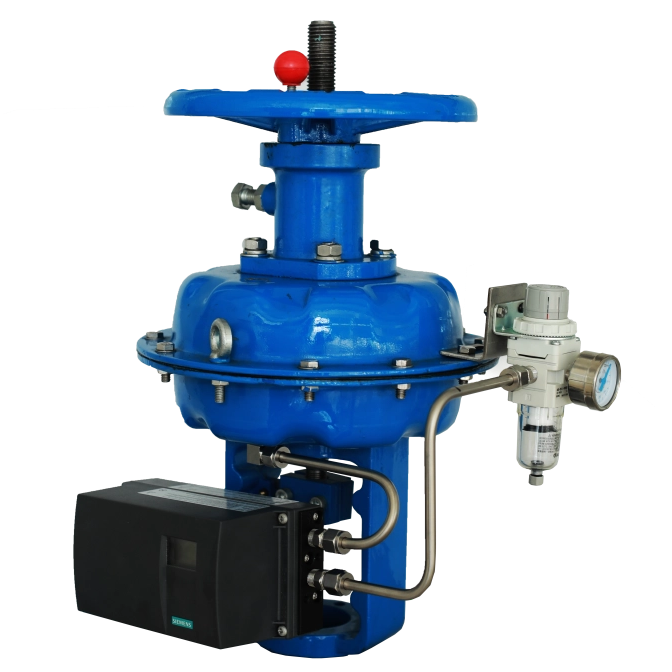

Manufactured by Yangzhou Hengchun Electronics Co., Ltd., the BHS Series Diaphragm Type Pneumatic Actuator is a high-performance pneumatic control device that converts pneumatic pressure signals into precise linear displacement and output force via elastic diaphragms. As a core pneumatic actuator for industrial valve control, it directly drives the spool movement of control valves and globe valves, realizing accurate continuous regulation and on-off control of key process parameters including fluid flow rate, pressure and temperature. Classified into spring-return (single-acting) and double-acting types, the single-acting version is specially engineered for emergency shut-off (ESD) working conditions, making it a reliable choice for industrial safety control. With a maximum single action thrust of 93KN at 5Bar pressure, this series stands out in heavy-duty industrial applications.
The actuator features a rated operating pressure of 0.4-0.8MPa (0.6MPa for common use) and a pressure withstanding strength of 1.5 times the rated pressure. With 3 minutes of pressure holding without leakage or deformation, ensuring stable operation under high-pressure conditions.
Adopting high-quality materials (QT450 ductile iron/cast aluminum cylinder block, aluminum alloy piston, NBR/FKM seals). The actuator achieves ultra-low leakage rates, meeting the strict industrial sealing standards for the back pressure side and shaft end.
It has a service life of ≥50,000 opening-closing cycles under rated load, with a standard operating temperature of -20℃~+80℃ and customizable low/high temperature versions (-40℃~+80℃/-20℃~+120℃). The protection grade reaches IP65/IP67, with optional Exd II BT4/CT4 explosion-proof grade for hazardous environments.
Equipped with complete standard and optional accessories, it supports bracket/flange mounting methods. Complying with national connection standards, and can be seamlessly matched with various industrial valves.
Parameters | Description |
Action Mode | Spring-return (single-acting) |
single action thrust | 93KN（pressure：5Bar） |
Rated Operating Pressure | 0.4-0.8MPa (0.6MPa commonly used) |
Pressure Withstanding Strength | 1.5 times the rated operating pressure, pressure holding for 3min without leakage/deformation |
Leakage Rate | Back pressure side ≤ (3+0.15D)cm³/min; Shaft end ≤ (3+0.15d)cm³/min (D=cylinder bore, d=shaft diameter, unit: mm) |
Actuation Service Life | ≥50,000 opening-closing cycles (under rated load) |
Operating Temperature | Standard: -20℃~+80℃; Custom low temperature: -40℃~+80℃; Custom high temperature: -20℃~+120℃ |
Protection Grade | IP65/IP67 |
Explosion-Proof Grade | Exd II BT4/CT4 (optional) |
Materials | Cylinder block: QT450 ductile iron/cast aluminum; Piston: aluminum alloy; Seals: NBR/FKM |
Connection Standard | Flange connection compliant with GB/T 12223; Air port thread compliant with GB/T 7306.1/2 |
Mounting Method | Bracket type / Flange type |
Standard Accessories | Opening indicator, stroke limiter, manual mechanism, signal feedback |
Optional Accessories | Solenoid valve, positioner, air filter regulator, lock-up valve |
Warranty Period | 18 months for the complete unit |
Delivery Lead Time | 25-30 working days for standard models |
Thrust Gauge of the BHS series diaphragm-type pneumatic actuators | ||||||
model | Effective area of the diaphragm (cm²) | stroke | Spring range (KPa) | Gas pressure (Bar) | spring force | Gas pressure force |
BHS22 | 350 | 16 | 20~100 | 0.14 | 700 | 1400 |
40~200 | 0.25 | 1400 | 1750 | |||
80~240 | 0.3 | 2800 | 2100 | |||
BHS23 | 350 | 25 | 20~100 | 0.14 | 700 | 1400 |
40~200 | 0.25 | 1400 | 1750 | |||
80~240 | 0.3 | 2800 | 2100 | |||
BHS34 | 560 | 40 | 20~100 | 0.14 | 1120 | 2240 |
40~200 | 0.25 | 2240 | 2800 | |||
80~240 | 0.3 | 4480 | 3360 | |||
BHS45 | 900 | 60 | 20~100 | 0.14 | 1800 | 3600 |
40~200 | 0.25 | 3600 | 4500 | |||
80~240 | 0.3 | 7200 | 5400 | |||
BHS56 | 1500 | 100 | 20~100 | 0.14 | 3000 | 6000 |
40~200 | 0.25 | 6000 | 7500 | |||
80~240 | 0.3 | 12000 | 9000 | |||
Hengchun Actuator adheres to strict ISO-certified manufacturing and quality control systems for the BHS Series Diaphragm Type Pneumatic Actuator. Every unit undergoes rigorous pressure holding, leakage and durability tests before delivery, ensuring compliance with industrial quality standards. The product provides an 18-month warranty for the complete unit, with professional after-sales support covering technical consultation and spare parts supply. All raw materials and accessories are selected from qualified global suppliers, further guaranteeing the long-term reliability of the actuator.
The BHS Series Diaphragm Type Pneumatic Actuator is widely applied in core industrial sectors including oil & gas, power generation and water treatment. Typical use cases include: ESD emergency shut-off systems in oil and gas pipelines, flow and pressure regulation of process media in thermal power plants, precise control of water treatment process valves, and on-off/regulation control of globe valves and control valves in chemical processing industries. Its spring-return design makes it the first choice for safety-critical working conditions that require rapid valve shut-off in emergency situations.
The spring-return (single-acting) version is mainly used for emergency shut-off (ESD) working conditions, which can automatically drive valve reset and shut-off when the pneumatic pressure is lost, ensuring industrial process safety.
Standard accessories include opening indicator, stroke limiter, manual mechanism and signal feedback; optional accessories cover solenoid valve, positioner, air filter regulator and lock-up valve, supporting personalized configuration for different industrial needs.
