CHC series electric actuator is an innovative product integrating high efficiency, stability and intelligent features. Relying on an advanced technical architecture, it ensures high efficiency and accuracy in data processing and delivers a smooth operational experience for users. Its compact design is especially suitable for the limited installation space on ships. Equipped with a permanent magnet synchronous motor of high power density and a high-efficiency precision planetary gear transmission system, it is reduced in size by 50%
| Quantity: | |
|---|---|
CHC series

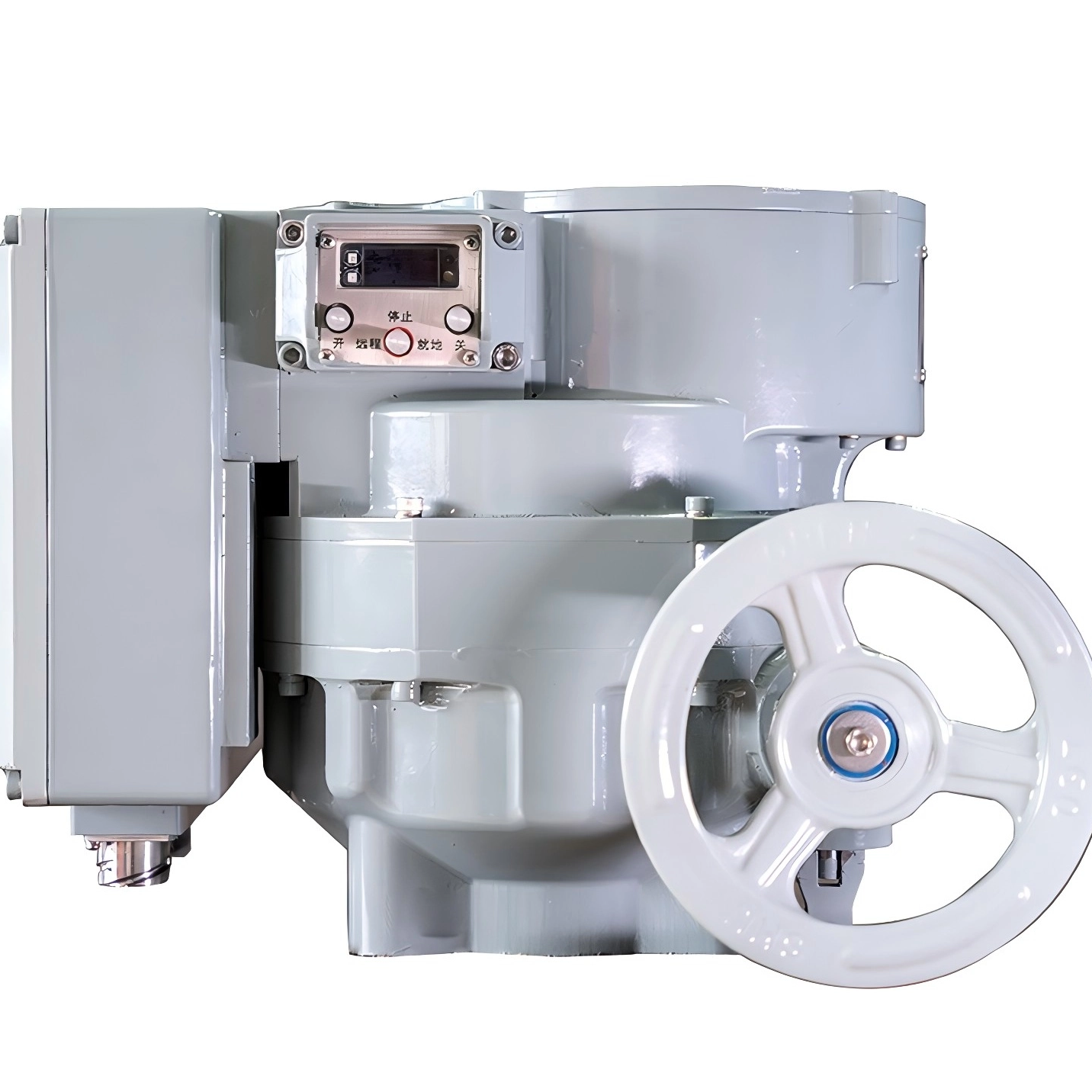

The CHC series electric actuator is an innovative intelligent industrial product independently developed by Yangzhou Hengchun Electronics Co., Ltd., a professional China-based manufacturer of valve actuators. Integrating high efficiency, super stability and intelligent control core features, this actuator is built with an advanced technical architecture, ensuring high-precision data processing and smooth operational performance for industrial valve control. Its optimized compact structural design is specially tailored for limited installation spaces, especially marine equipment, and equipped with a high power density permanent magnet synchronous motor and a high-efficiency precision planetary gear transmission system, which reduces the overall size by 50% compared with traditional products, making it a highly adaptable electric actuator for multiple industrial scenarios.
Powered by a high power density permanent magnet synchronous motor and precision planetary gear transmission, the actuator realizes high energy efficiency and low energy consumption in operation. With the 50% size reduction solving the installation space dilemma in compact industrial equipment such as ships and pumping stations.
With IP67 protection grade and C3 corrosion resistance rating, the actuator can resist high humidity, salt spray and dust erosion. Withstand a wide operating temperature range of -25℃~+70℃, adapting to various harsh industrial environments.
It supports real-time status feedback via CAN bus and is compatible with 380VAC industrial power grids, realizing intelligent remote control and data monitoring. The built-in overload protection function effectively prevents equipment faults caused by abnormal system pressure, improving operational stability.
Equipped with manual emergency adjustment function, the actuator can realize manual valve control when the bus system fails. Ensuring the continuous operation of industrial processes and navigation safety, and greatly improving the emergency response capability.
Parameter Category | Technical Specifications |
Core Benchmark | German technical standards |
Product Models | CHCMT100, CHCMT50 |
Protection Grade | IP67 |
Corrosion Resistance Grade | C3 (per ISO 12944 standard) |
Mechanical Life | Stable high-frequency operation ≥200,000 cycles |
Control Bus | Dual-channel CAN Bus |
Response Time | ≤100ms |
Operation Modes | Manual / Automatic dual modes |
Rated Voltage | 380V |
Installation & Maintenance | Structure design for convenient and efficient operation |
Applicable Scenarios | Complex industrial working conditions, precise valve control |
As an ISO certified professional actuator manufacturer, Hengchun Actuator implements a strict full-process manufacturing and quality control system for the CHC series electric actuator from R&D, component procurement to production and assembly. All products comply with international industrial standards, and the core components such as the permanent magnet synchronous motor and transmission system undergo multiple performance tests to ensure long-term stable operation in harsh industrial environments. The company’s professional R&D and quality inspection team provides comprehensive technical support for product quality, making the CHC series electric actuator a reliable choice for industrial valve control.
The core application scenario of the CHC series electric actuator is valve control for marine fuel oil, lubricating oil and cooling water pipelines. Its IP67 protection and C3 corrosion resistance perfectly adapt to the marine high-humidity and salt spray environment, and the manual emergency function ensures ship navigation safety in case of bus failure.
It is widely used for valve control in thermal power plants and heating power plants, with 380VAC power supply matching industrial power grids, and CAN bus real-time feedback and overload protection effectively avoiding equipment faults caused by system pressure anomalies.
Adapted to valve control in blast furnace cooling water and combustion air pipelines, the actuator’s wide temperature resistance range meets the high-temperature operating requirements of metallurgical production, and the manual operation function maintains continuous production when the bus fails.
Applied to automatic valve control in water supply pumping stations and sewage treatment plants, its waterproof and dustproof design adapts to outdoor humid and dusty environments, and the precise intelligent adjustment function helps water supply and sewage systems achieve energy saving and consumption reduction.
The actuator has IP67 protection grade and C3 corrosion resistance, which can resist the harsh marine environment of high humidity and salt spray. Meanwhile, its compact design is adapted to the limited installation space of ships, and the manual emergency adjustment function ensures marine navigation safety.
Yes. It supports real-time status feedback through CAN bus, is compatible with 380VAC industrial power grids, and can be seamlessly integrated with industrial intelligent control systems to realize remote control and data monitoring of valve operation.
