CKDII Series

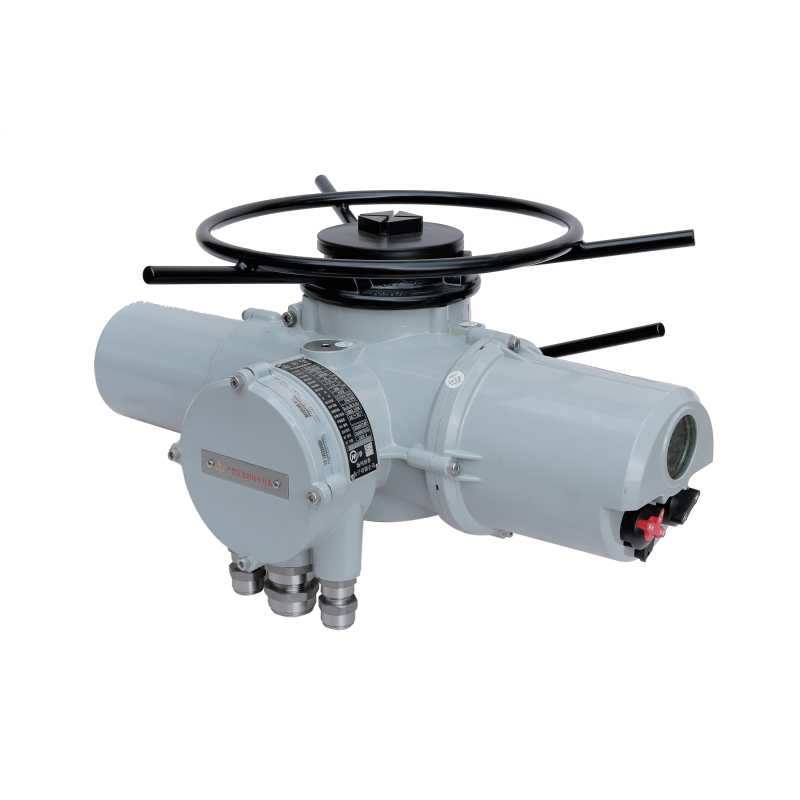

The CKDII Series Intelligent Multi-turn Electric Actuator is a cutting-edge industrial automation valve control device independently developed by Yangzhou Hengchun Electronics Co., Ltd., a leading China manufacturer of industrial actuators. Engineered with a high-precision worm gear transmission system, high-efficiency AC squirrel cage motor and integrated intelligent control unit, this electric actuator delivers zero-delay command response and ultra-stable operation for industrial valves. It is specially designed for gate valves, globe valves, diaphragm valves and slide valves, and features seamless integration with mainstream industrial control systems via multi-bus communication modules. With an IP68 protection rating and explosion-proof performance up to Exd II CT6, the CKDII Series excels in extreme working conditions, becoming a core component for safe and efficient industrial operation in power, petrochemical, metallurgy and marine engineering fields.
Equipped with a tempered glass window and innovative dual-screen display technology (dot matrix + segment display), it offers rich operational parameter visualization. A magnetoelectric multi-turn absolute position encoder with a 10,000-turn detection stroke ensures high-precision valve position sensing, and a smart battery management system maintains continuous valve position display during power failure.
The actuator provides 31 fault diagnosis functions (motor overheating, phase loss, over-torque alarm, etc.) and multiple preventive fault diagnosis features including temperature and torque trend analysis, enabling real-time monitoring of 10 types of status information for intelligent risk control.
It fully supports mainstream bus protocols (Autbus, Profibus-DP, Modbus, FF, Hart) and Bluetooth communication for wireless data interaction and program upgrade. The plug-and-play card design and anti-vibration circuit board bracket simplify on-site maintenance, while the dual-sealing structure enhances overall sealing performance and expands mechanical cavity for easy component installation.
Parameters | Description |
Power supply type | AC 220V (50/60Hertz) / AC 380V (50/60 Hertz) optional |
Torque range | Direct installation torque: 40~3000 N·m; with gearbox, maximum torque up to 50,000 N·m;During ordering, the specific model is selected by the manufacturer based on torque and speed requirements. |
Control type | Optional：hard wiring、analog signal、fieldbus（MODBUS、FF、HART、PROFIBUS-DP） |
sheathing material | cast aluminum alloy |
levels of protection | The standard is IP68; others can be customized. |
ambient temperature | ※Standard: -30℃ ~ +70℃ |
external corrosion protection | ※Standard coating: pickling and phosphating + surface electrostatic powder spraying; |
double seal protection | The control section is isolated from the junction box to protect electronic components. |
Explosion-proof rating: | Ex d IIB T4 Gb、Ex db IIC T4 Gb、Ex tb ⅢC T130℃ Db |
Motor Technology | Totally enclosed non-air-cooled AC squirrel cage motor; Insulation class F (Class H customizable); |
motor duty | ※Motor with S4 duty (suitable for periodic starting conditions); |
gear drive | Self-locking at all speeds |
Handwheel | Does not rotate during electric operation; equipped with automatic clutch; torque complies with GB/T 28270 standard. |
output flange | ISO 5210/GB 12222；optional special flange |
lubricating oil | Lifetime effectiveness; no periodic maintenance required |
Supply type | Three-phase/single-phase optional; the maximum voltage for three-phase power supply is 690V; 50/60Hz |
cable entry | Standard: 1×M48×2 + 2×M33×2; Explosion-proof type: 1×NPT1.5" + 2×NPT1" (can be increased); Customizable; Sunflower terminal block |
Setting | Infrared/Pressure communication (Bluetooth optional); Parameters stored in non-volatile memory (with password protection); Configurable via remote display/programmer |
On-site knob | Tool-free setting; Local/Remote/Stop mode selection; Electrically operable in local mode |
EC instruct | Comply with 2004/08/EC (Electromagnetic Compatibility Directive) and 2006/95/EC (Low Voltage Directive); harmonized standards such as EN 61000 are applicable. |
Performance Data Sheet for CKDII Series Electric Actuators (380VAC/50HZ): Suitable for On-Off type or modulating (non-Frequent) type
Model | Out | motor power | Rated current | ||
Rated torque | speed（rpm） | ||||
CKDII10 | 100 | 24 | 0.25 | 4.2 | |
80 | 36 | 0.3 | 4.8 | ||
60 | 48 | 0.32 | 5 | ||
50 | 72 | 0.38 | 7 | ||
40 | 96 | 0.4 | 8 | ||
CKDII16 | 200 | 24 | 0.5 | 3.18 | |
150 | 36 | 0.56 | 3.3 | ||
120 | 48 | 0.6 | 3.5 | ||
100 | 72 | 0.75 | 4.8 | ||
80 | 96 | 0.8 | 5.1 | ||
CKDII25 | 250 | 24 | 0.63 | 3.5 | |
230 | 36 | 0.86 | 3.5 | ||
200 | 48 | 1 | 4 | ||
180 | 72 | 1.36 | 5.5 | ||
160 | 96 | 1.61 | 6 | ||
140 | 144 | 2.1 | 6.5 | ||
CKDII60 | 600 | 24 | 1.5 | 6 | |
450 | 48 | 2.51 | 7.8 | ||
300 | 96 | 3 | 8.4 | ||
250 | 144 | 3.76 | 9.2 | ||
CKDII100 | 1200 | 24 | 3 | 12 | |
1000 | 36 | 3.8 | 14 | ||
900 | 48 | 4.5 | 15 | ||
800 | 72 | 6 | 16 | ||
700 | 96 | 7 | 16 | ||
600 | 144 | 9 | 18 | ||
550 | 192 | 11 | 20 | ||
CKDII150 | 1500 | 24 | 3.8 | 15 | |
1300 | 36 | 5 | 16 | ||
1100 | 48 | 5.5 | 18 | ||
1000 | 72 | 7.5 | 20 | ||
900 | 96 | 9 | 20 | ||
700 | 144 | 11 | 25 | ||
600 | 192 | 12 | 30 | ||
CKDII200 | 2000 | 24 | 5 | 20 | |
1600 | 36 | 6 | 23 | ||
1400 | 48 | 7 | 25 | ||
1300 | 72 | 9.8 | 28 | ||
1200 | 96 | 12 | 33 | ||
1000 | 144 | 15 | 38 | ||
800 | 192 | 16 | 40 | ||
CKDII250 | 2500 | 24 | 6.5 | 30 | |
2000 | 36 | 7.5 | 32 | ||
1800 | 48 | 9 | 35 | ||
1600 | 72 | 12 | 40 | ||
1500 | 96 | 15 | 45 | ||
1300 | 144 | 19.5 | 55 | ||
1000 | 192 | 20 | 60 | ||
CKDII300 | 3000 | 24 | 7.5 | 35 | |
2400 | 36 | 9 | 38 | ||
2000 | 48 | 10 | 40 | ||
1800 | 96 | 18 | 55 | ||
1500 | 144 | 24 | 60 | ||
1300 | 192 | 26 | 75 | ||

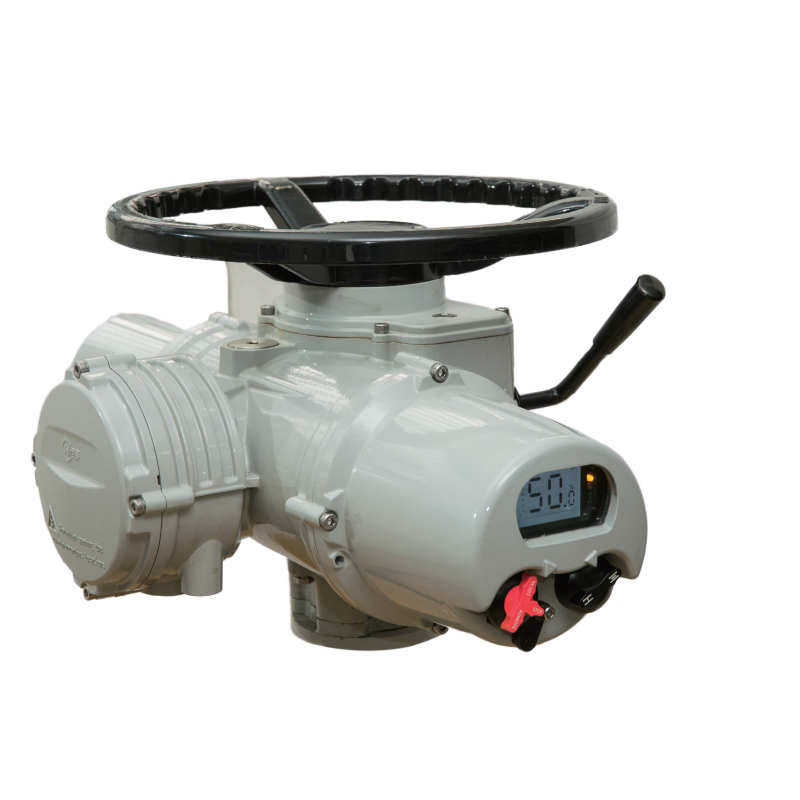

Performance Data Sheet for CKD Series Electric Actuators (380VAC/50HZ): Suitable for modulating (Frequent Adjustment)Type
Model | Out | motor power | Rated current | ||
Rated torque | Max torque（Nm） | speed（rpm） | |||
CKDII10 | 50 | 100 | 24 | 0.25 | 2.2 |
40 | 80 | 36 | 0.3 | 2.4 | |
30 | 60 | 48 | 0.32 | 2.7 | |
CKDII16 | 100 | 200 | 24 | 0.5 | 3.18 |
80 | 150 | 36 | 0.56 | 3.3 | |
60 | 120 | 48 | 0.6 | 3.5 | |
CKDII25 | 150 | 250 | 24 | 0.63 | 2.8 |
120 | 230 | 36 | 0.86 | 3.3 | |
110 | 200 | 48 | 1 | 3.6 | |
105 | 180 | 72 | 1.36 | 4.1 | |
CKDII60 | 300 | 600 | 24 | 1.5 | 6 |
230 | 450 | 48 | 2.51 | 7.8 | |
Hengchun Actuator adheres to strict international quality standards for the CKDII Series Intelligent Multi-turn Electric Actuator, which complies with 2004/08/EC (Electromagnetic Compatibility Directive) and 2006/95/EC (Low Voltage Directive), as well as EN 61000 harmonized standards. All end cover fastening bolts use stainless steel, and the standard pickling phosphating + electrostatic powder spraying coating ensures excellent corrosion resistance (WF2 anti-corrosion rating for marine use). For after-sales guarantee, we provide an 18-month warranty for the whole actuator and a 24-month warranty for core components (motor, controller, encoder, etc.), with lifelong professional maintenance service after the warranty period. Free installation videos and remote technical guidance are available for all customers.
It operates stably at Jinneng Changzhi Power Plant (ambient temperature >100°C, medium temperature >400°C) with a split-type design. At Xinjiang Beitun Oil Depot (-49°C minimum) with an OLED display that works without preheating at -50°C and low-temperature silicone rubber seals.
Adopted in CNOOC Weizhou Drilling Platform and Offshore Platform 196. It features 316L stainless steel components and IP66 protection, adapting to high-salt-spray and high-humidity marine environments.
Applied to the primary desuperheating water regulating valve of Xuzhou Mining Group Power Plant (400+ adjustments/hour). It supports a maximum actuation frequency of 1200 times/hour with PID control algorithm and wear-resistant worm gears.
Provide your valve parameters (type, rated torque), working condition data (pressure, temperature, corrosion level) and control requirements (signal type, feedback needs), and our professional team will provide free and accurate model selection guidance.
28-30 working days for standard models; 30-45 working days for customized models (extreme temperature/corrosion, special torque).
Free remote guidance and installation videos are provided for all customers; on-site installation guidance is available for bulk purchases (travel expenses borne by the purchaser).
