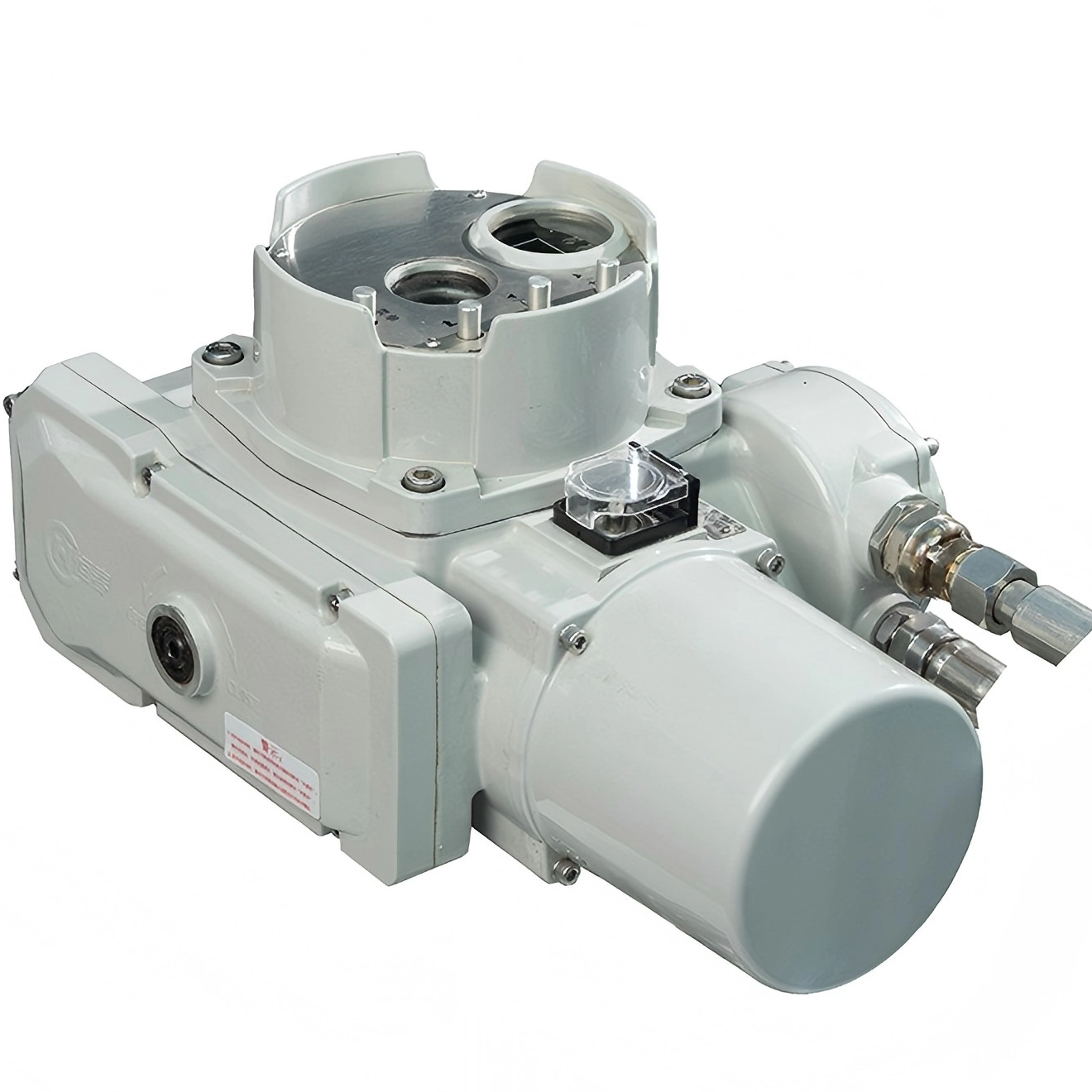

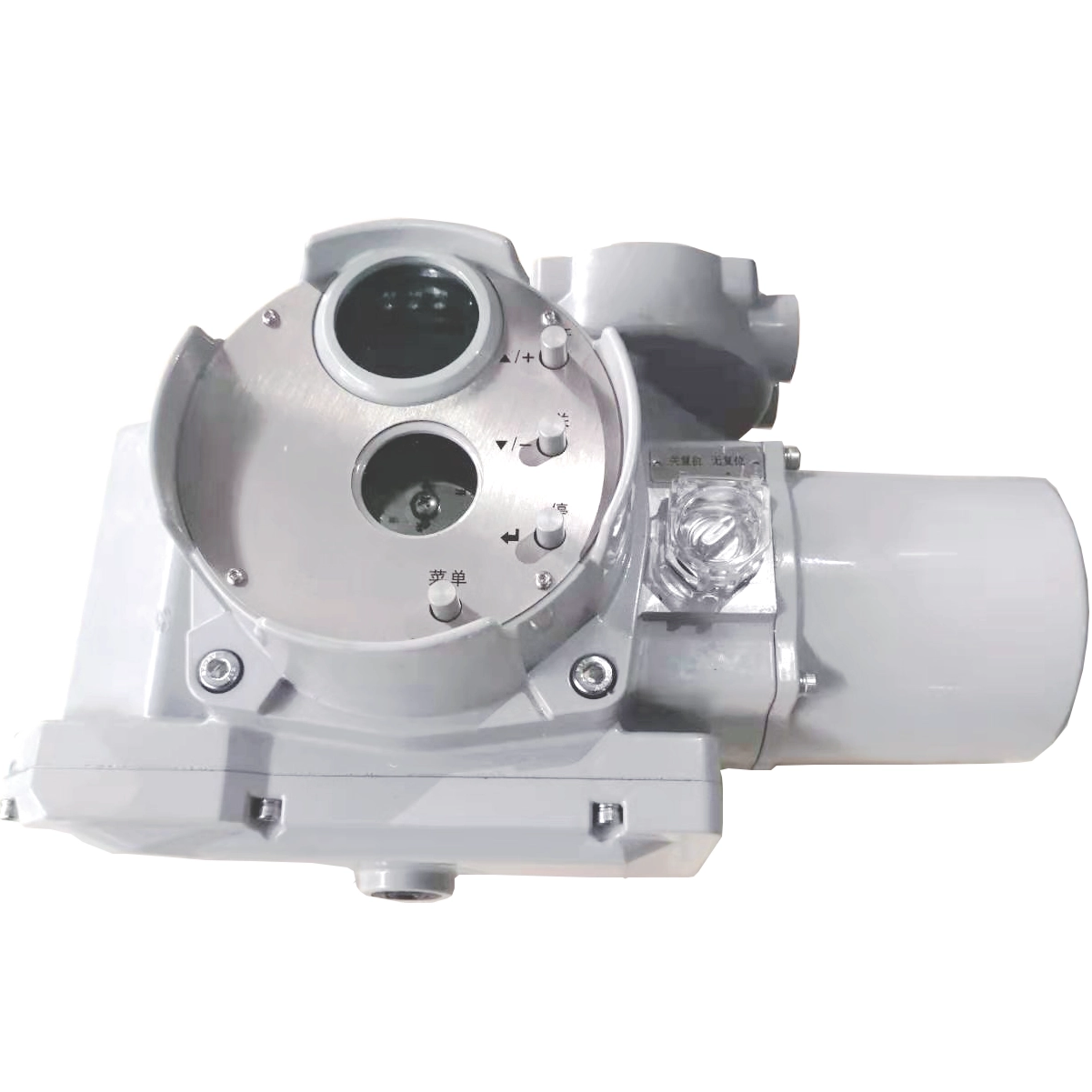

HVQR series battery/capacitor reset-type electric actuator is an industrial actuator with a power-off automatic reset function independently developed by Yangzhou Hengchun Electronic Co., Ltd. Specifically designed for matching small-caliber gate valves, globe valves, butterfly valves and other valves, it can drive the valve to a safe position by virtue of its internal energy storage device (battery/capacitor) in the event of power failure or emergency fault. It is widely applied in the automatic control scenarios of petroleum, chemical industry, electric power, shipbuilding and other fields.
| Quantity: | |
|---|---|

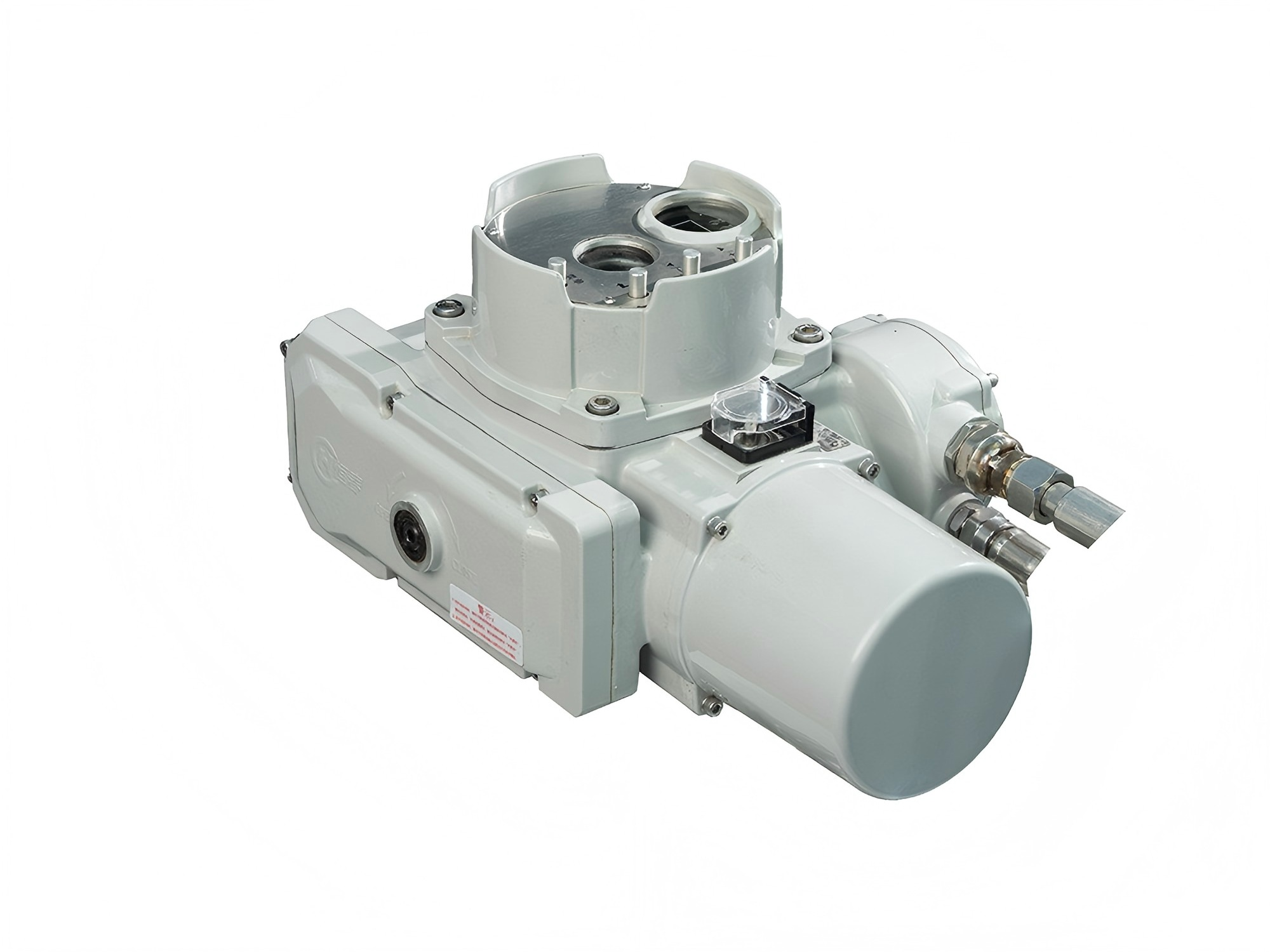

HVQR series
The HVQR Series is a high-performance power-off reset electric actuator independently R&D by Yangzhou Hengchun Electronic Co., Ltd., a leading China-based manufacturer of industrial valve actuators. As a dedicated industrial electric actuator with integrated energy storage, it features a built-in battery/capacitor energy storage device that enables automatic power-off reset functionality. Exclusively engineered for matching small-caliber gate valves, globe valves, butterfly valves and other common industrial valves, this actuator can rapidly drive valves to a preset safe position in the event of sudden power failure or emergency equipment fault, effectively avoiding industrial safety hazards. Compact in structure and easy to install, the HVQR Series battery/capacitor reset-type electric actuator has become a core component for automatic valve control in various heavy industries, with reliable performance verified by practical application scenarios.
Powered by an internal battery/capacitor energy storage system. The actuator realizes fast and accurate valve reset without external power supply when power failure or emergency fault occurs, ensuring industrial process safety.
Optimized for small-caliber gate, globe and butterfly valves. It matches most standard industrial small-diameter valves with flexible connection modes, reducing secondary adaptation costs.
With structural sealing and anti-corrosion design, it is resistant to humidity, vibration and dust. Adapting to the complex working environments of petroleum, chemical and marine fields.
The integrated structural design saves installation space. The standardized interface is easy to connect with valve systems, shortening on-site commissioning time.
Parameter Category | Specific Parameters |
Basic Specifications | Product Type: Quarter-turn nuclear-grade valve electric actuator Nuclear Grade Certification: Class 1E electrical safety rating, Category K3 seismic classification, Seismic Category Ⅰ certification Design Life: 40 years Protection Grade: IP6 |
Power and Transmission | Power Supply: 380V three-phase AC power supply Transmission Structure: Worm gear mechanical transmission Output Form: Torque output (thrust output achievable via conversion device) Applicable Valves: Nuclear power gate valves, globe valves and other linear valves |
Environmental and Working Condition Withstand Capacity | Seismic Resistance: Withstands SL2 safe shutdown seismic load Irradiation Resistance: Withstands 110×10⁴Gy γ-ray irradiation Operating Conditions: Stable operation under normal working conditions and emergency safe shutdown |
Core Protection and Material | Overload Protection: Disc spring assembly + torque control mechanism for intelligent overload protection Core Materials: ZL111 gearbox housing, 20CrMnTi worm, QA110-4-4 worm gear Processing Technology: Precision mechanical processing with strict inspection throughout the whole process |
Structure and Features | Design Feature: Modular architecture design Operation and Maintenance Advantages: Convenient and efficient installation and commissioning; easy disassembly, assembly and maintenance of components, reducing O&M costs and downtime Applicable Field: Nuclear power field (matching outside the containment vessel of nuclear reactor) |
As an ISO certified industrial actuator manufacturer, Yangzhou Hengchun implements strict full-process quality control for the HVQR Series battery/capacitor reset-type electric actuator, from raw material procurement, component processing to finished product assembly and testing. All products undergo multiple performance tests including power-off reset simulation, high and low temperature resistance, and vibration resistance before leaving the factory. The optional explosion-proof and dust-proof certification meets the safety requirements of hazardous industrial areas such as petrochemical industry. The independent R&D and manufacturing system ensures the consistency of product quality, and the mature after-sales support system provides long-term technical guarantee for users.
Applied in small branch pipelines for light hydrocarbon/auxiliary agent delivery. With explosion and dust proof performance to prevent medium leakage, fire and other safety risks.
Installed in auxiliary system pipelines such as boiler water supply, desulfurization and denitration. Ensure the safe and stable operation of power plant core equipment.
Used in power cooling, fuel supply and ballast water regulation pipelines. Adapting to the humid and bumpy marine working conditions with stable performance.
Applied in household gas and community water supply branch pipelines. Preventing medium leakage and overpressure to safeguard civil pipe network safety.
Adopted in raw material delivery and aseptic process pipelines. Avoiding medium backflow and contamination to protect production and quality control.
It is specially designed for small-caliber gate valves, globe valves and butterfly valves, and can be customized for interface adaptation according to user-specific valve specifications.
The battery/capacitor energy storage system is designed for instant emergency reset, which can complete the valve safe position drive in a short time after power failure, and the energy storage capacity can be customized according to user needs.
Yes, the actuator provides optional explosion-proof and dust-proof certification, which fully meets the safety operation requirements of hazardous areas in petrochemical and other industries.
