CKDJ Series

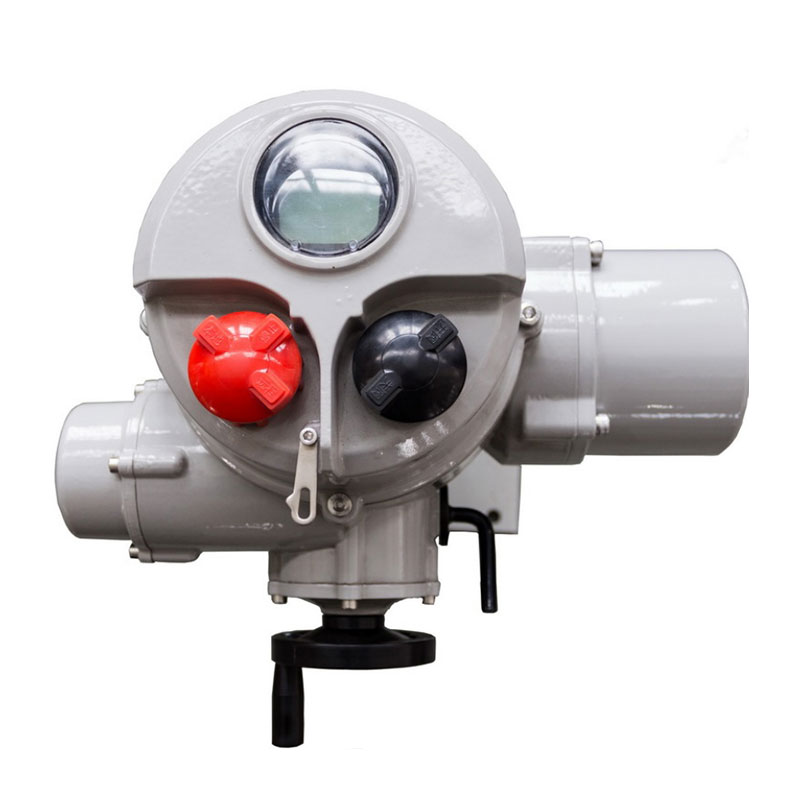

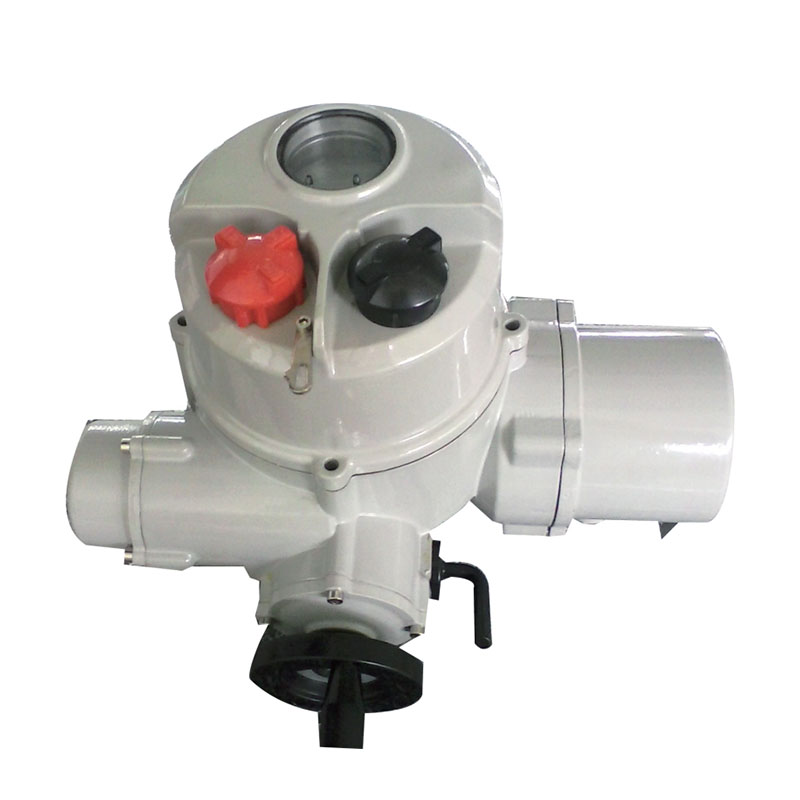

The CKDJ Series Part-turn Electric Actuator is a high-performance industrial valve actuator engineered by Yangzhou Hengchun Electronics, a leading China manufacturer of fluid control equipment. Specialized for quarter-turn valves including butterfly valves, ball valves and dampers, this intelligent electric actuator features a standard rotation range of 0–90°, extendable to 90°–300° on demand, integrating advanced digital control and reliable mechanical transmission in one unit. Available in on-off (S2-15min duty cycle) and regulating (S4-25% duty cycle) versions, it excels in complex industrial environments and hazardous areas with frequent start-stop operations, and is fully compatible with DCS/PLC systems for precise remote valve control, becoming a core automation solution for industrial valve regulation.
Adopts a non-intrusive design with Hall-effect sensing knobs and infrared remote control, enabling parameter configuration and status monitoring without opening the electrical enclosure. Effectively preventing dust and moisture ingress and suiting explosive hazardous areas.
Equipped with industrial-grade microprocessors and non-contact magnetoelectric sensors, it achieves ±0.5% positioning accuracy. The bronze alloy worm gear and surface-hardened alloy steel worm drive realize self-locking, low noise and minimal backlash, with excellent wear resistance.
Boasts an IP65 protection rating (IP68 optional) with phosphating and plastic-sprayed cast aluminum alloy housing and stainless steel fasteners, operating stably in -40℃ to 85℃ (customizable for extreme temperatures). With outstanding corrosion resistance.
Integrates full intelligent protection (torque overload, motor overheating, phase sequence protection) and optional permanent magnet synchronous motor with variable frequency drive. Cutting energy consumption by over 30% vs conventional asynchronous motors.
Parameters | Description |
Power supply type | AC 220V (50/60Hertz) / AC 380V (50/60 Hertz) optional |
Torque range | Direct installation torque: 40~2000N.m |
Control type | Optional：hard wiring、analog signal、fieldbus（MODBUS、FF、HART、PROFIBUS-DP） |
sheathing material | cast aluminum alloy |
levels of protection | The standard is IP68; others can be customized. |
ambient temperature | ※Standard: -30℃ ~ +70℃ |
external corrosion protection | ※Standard coating: pickling and phosphating + surface electrostatic powder spraying; |
double seal protection | The control section is isolated from the junction box to protect electronic components. |
Explosion-proof rating: | Ex d IIB T4 Gb、Ex db IIC T4 Gb、Ex tb ⅢC T130℃ Db |
Motor Technology | Totally enclosed non-air-cooled AC squirrel cage motor; Insulation class F (Class H customizable); |
motor duty | ※Motor with S4 duty (suitable for periodic starting conditions); |
gear drive | Self-locking at all speeds |
Handwheel | Does not rotate during electric operation; equipped with automatic clutch; torque complies with GB/T 28270 standard. |
output flange | ISO 5210/GB 12222；optional special flange |
lubricating oil | Lifetime effectiveness; no periodic maintenance required |
Supply type | Three-phase/single-phase optional; the maximum voltage for three-phase power supply is 690V; 50/60Hz |
cable entry | Standard: 1×M48×2 + 2×M33×2; Explosion-proof type: 1×NPT1.5" + 2×NPT1" (can be increased); Customizable; Sunflower terminal block |
Setting | Infrared/Pressure communication (Bluetooth optional); Parameters stored in non-volatile memory (with password protection); Configurable via remote display/programmer |
On-site knob | Tool-free setting; Local/Remote/Stop mode selection; Electrically operable in local mode |
EC instruct | Comply with 2004/08/EC (Electromagnetic Compatibility Directive) and 2006/95/EC (Low Voltage Directive); harmonized standards such as EN 61000 are applicable. |
Model | Out | motor power | Rated current | Flange（ISO5210) | ||
Rated torque | Travel time（S） | |||||
CKDJ5 | 50 | 25 | 13 | 0.4 | ||
CKDJ10 | 100 | 25 | 25 | 0.6 | ||
80 | 13 | 25 | 0.8 | |||
CKDJ16 | 160 | 25 | 40 | 0.9 | ||
CKDJ25 | 200 | 25 | 45 | 1.1 | ||
CKDJ30 | 300 | 25 | 50 | 1.1 | ||
240 | 13 | 50 | 1.2 | |||
CKDJ40 | 400 | 25 | 60 | 1.2 | ||
CKDJ60 | 600 | 25 | 120 | 1.4 | ||
500 | 13 | 120 | 1.8 | |||
CKDJ80 | 800 | 25 | 150 | 1.8 | ||
CKDJ100 | 1000 | 25 | 180 | 2.1 | ||
CKDJ150 | 1250 | 25 | 220 | 2.4 | ||
1000 | 13 | 220 | 2.8 | |||
CKDJ200 | 1700 | 25 | 250 | 3.0 | ||
Performance Data Sheet for CKDJ Series Electric Actuators (380VAC/50HZ): Suitable for modulating (Frequent Adjustment) Type
Model | Out | motor power | Rated current | ||
Rated torque | Max torque | Travel time（S） | |||
CKDJ5 | 30 | 50 | 25 | 13 | 0.3 |
CKDJ10 | 50 | 100 | 25 | 25 | 0.6 |
40 | 80 | 13 | 25 | 0.8 | |
CKDJ16 | 80 | 160 | 25 | 40 | 0.9 |
CKDJ25 | 100 | 200 | 25 | 45 | 1.1 |
CKDJ30 | 150 | 300 | 25 | 50 | 1.1 |
120 | 240 | 13 | 50 | 1.2 | |
CKDJ40 | 200 | 400 | 25 | 60 | 1.2 |
CKDJ60 | 300 | 600 | 25 | 120 | 1.4 |
250 | 500 | 13 | 120 | 1.8 | |
CKDJ80 | 400 | 800 | 25 | 150 | 1.8 |
CKDJ100 | 500 | 1000 | 25 | 180 | 2.1 |
CKDJ150 | 650 | 1250 | 25 | 220 | 2.4 |
500 | 1000 | 13 | 220 | 2.8 | |
CKDJ200 | 850 | 1700 | 25 | 250 | 3 |
Performance Data Sheet for CKD Series Electric Actuators (220VAC/50HZ): Suitable for On-Off type or modulating (non-Frequent) type
Model | Out | motor power | Rated current | Flange（ISO5210) | ||
Rated torque | Travel time（S） | |||||
CKDJ5 | 50 | 25 | 13 | 1 | ||
CKDJ10 | 100 | 25 | 25 | 1.1 | ||
CKDJ30 | 200 | 25 | 50 | 1.4 | ||
CKDJ60 | 300 | 25 | 90 | 1.7 | ||
CKDJ200 | 500 | 25 | 180 | 2.4 | ||
Performance Data Sheet for CKD Series Electric Actuators (220VAC/50HZ): Suitable for modulating (Frequent Adjustment) Type
Model | Out | motor power | Rated current | ||
Rated torque | Max torque | Travel time（S） | |||
CKDJ5 | 30 | 50 | 25 | 13 | 1 |
CKDJ10 | 50 | 100 | 25 | 25 | 1.1 |
CKDJ30 | 100 | 200 | 25 | 50 | 1.4 |
CKDJ60 | 150 | 300 | 25 | 90 | 1.7 |
CKDJ200 | 250 | 500 | 25 | 180 | 2.4 |
Hengchun upholds strict quality control for the CKDJ Series Part-turn Electric Actuator—all core components undergo high-temperature aging testing, with electrical and mechanical parts arranged separately for strong anti-interference performance. The product complies with EU EMC and Low Voltage Directives (2004/08/EC, 2006/95/EC) and national standards (GB/T 28270). We provide an 18-month whole machine warranty and 24-month warranty for core components (motor, controller, etc.), with lifelong professional maintenance service after the warranty period, ensuring long-term stable operation for customers.
The CKDJ Series Part-turn Electric Actuator is widely applied across key industrial sectors:
Petrochemical Industry: For crude oil gathering, refining and chemical medium transmission, handling flammable/corrosive media with explosion-proof design and precise flow/pressure regulation.
Power Generation: Drives dampers/butterfly valves in thermal/nuclear power plant boiler and flue gas systems, adapting to high-temperature and dusty environments and reducing high-altitude maintenance costs.
Water Treatment: Controls dosing and butterfly valves in municipal sewage/industrial wastewater treatment, with torque overload protection for valve jamming and corrosion resistance for outdoor harsh conditions.
Metallurgy & Fire Protection: Used in steel plant blast furnace systems and fire protection ESD emergency control, supporting external interlock and realizing automatic process switching in light industry production lines.
Provide your valve parameters (type, required torque), working condition data (pressure, temperature) and control requirements (signal type, feedback needs), and our professional team will offer free one-on-one model selection guidance.
We offer free installation videos and remote technical guidance; on-site installation support is available for bulk purchases (travel expenses borne by the purchaser).
Standard CKDJ Series Part-turn Electric Actuator models are delivered in 28-30 working days; customized models (extreme temperature, special flange) take 30-45 working days.
