HCQ Series

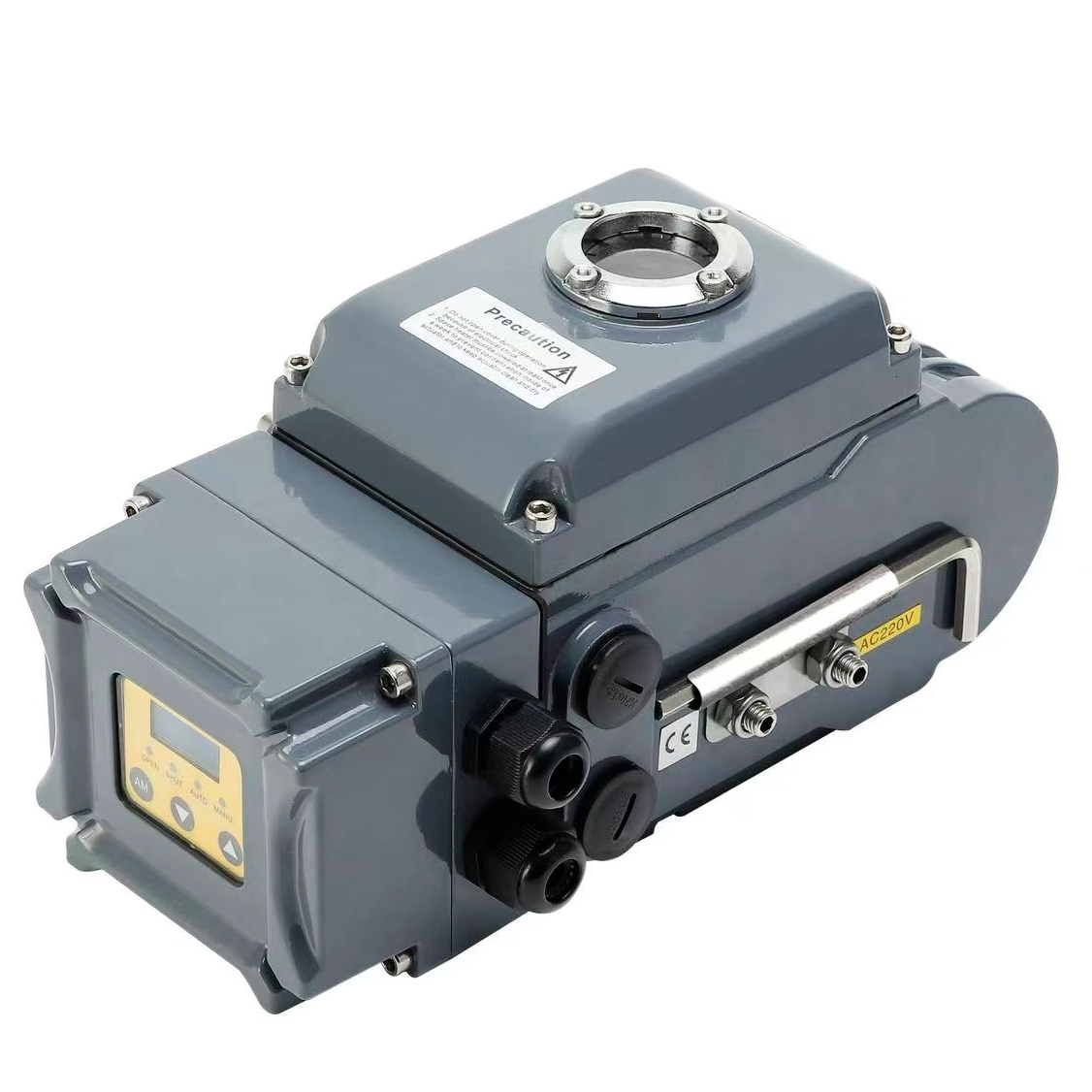

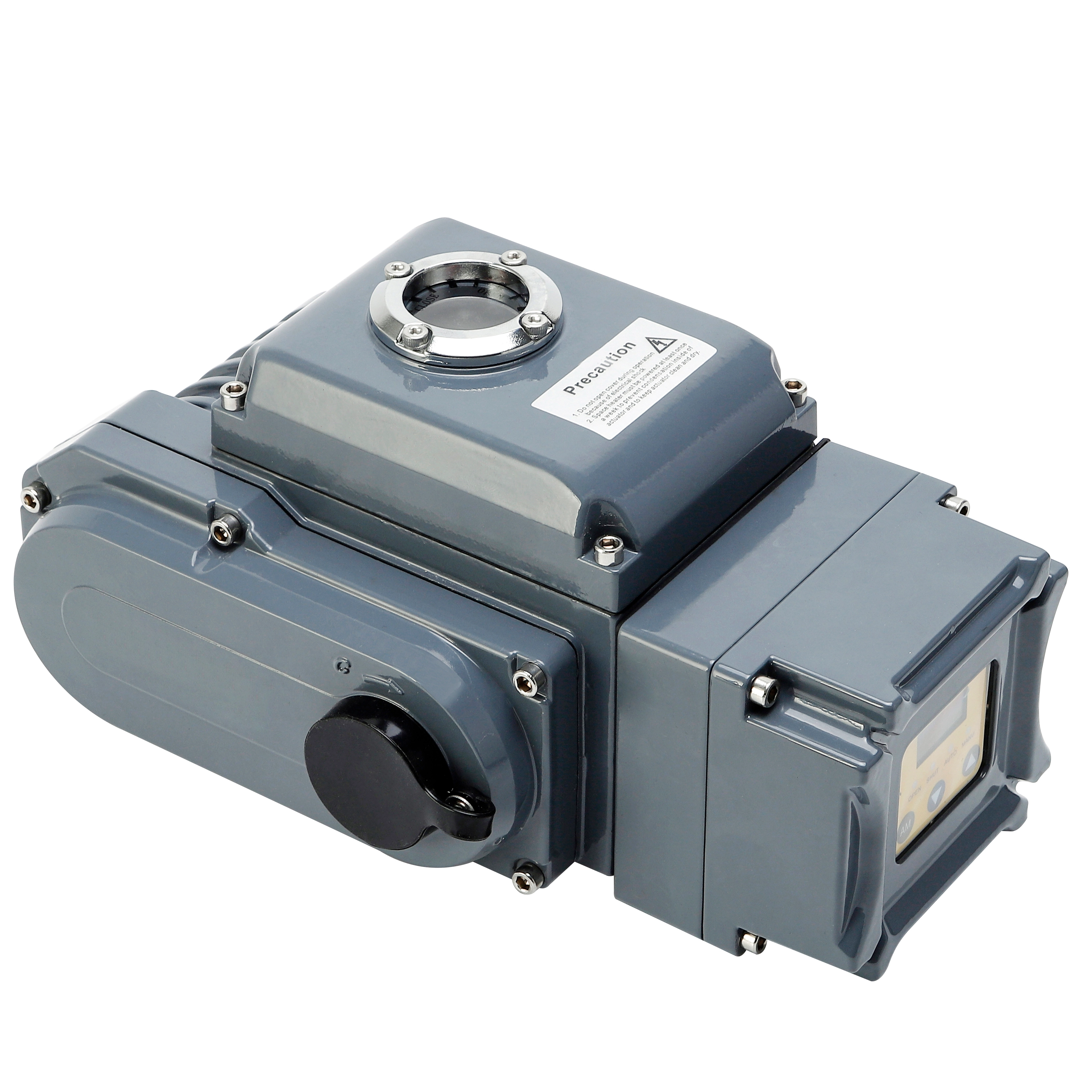

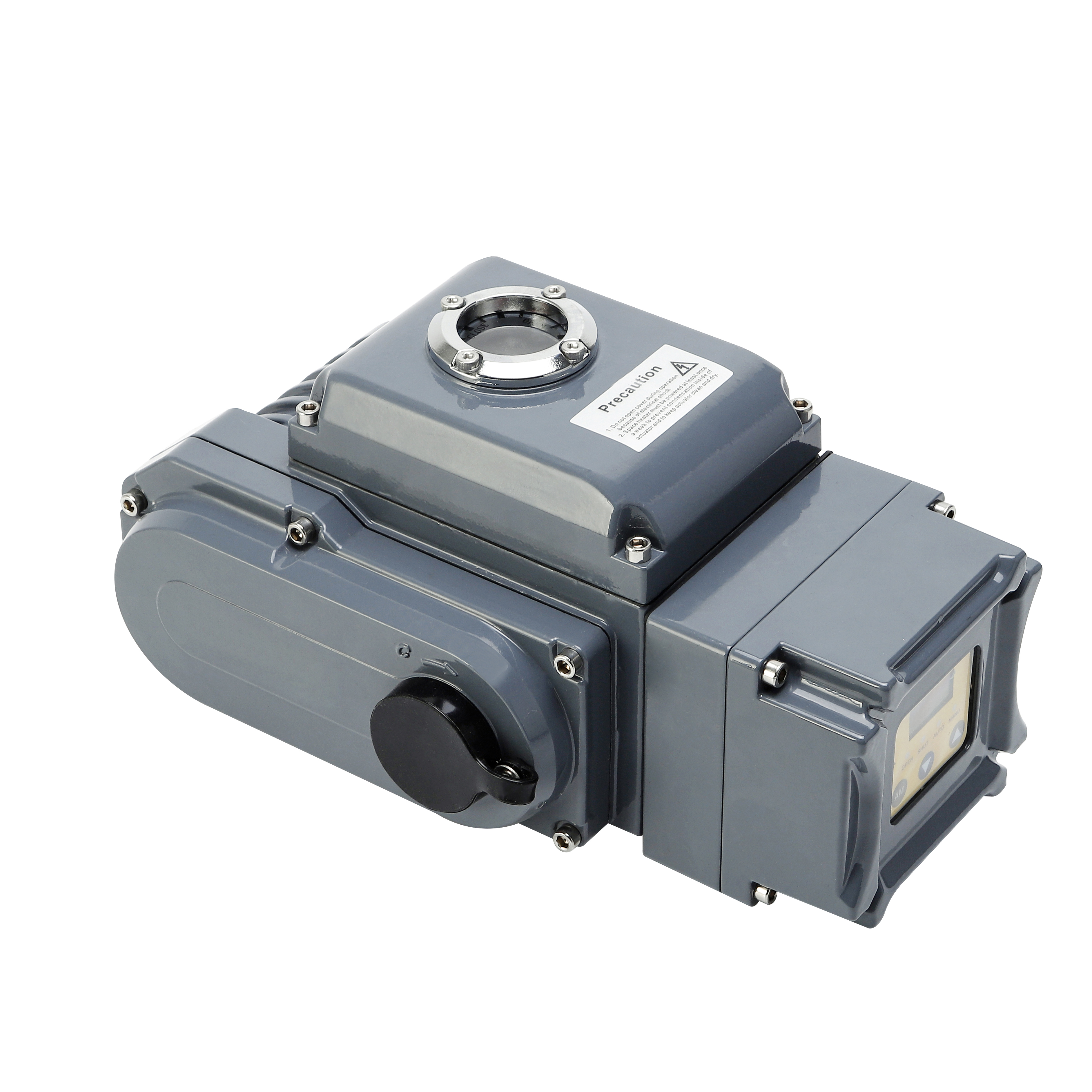

Advantages and Features of HCQ Series Compact Integrated Control Electric Valve Actuator
1.Integrated All-in-One Control Structure (Core Upgrade vs Basic Type) Different from the HCQ basic type that relies on an external control box, this integrated compact electric valve actuator adopts a built-in integrated control unit design. It integrates control circuit, signal feedback and driving mechanism as a whole, requiring no additional control accessories. It effectively saves over 30% installation space and on-site wiring workload, ideal for confined valve pits and pipeline shaft installation scenarios.
2.Plug-and-Play Installation & Lower Comprehensive Cost Equipped with complete internal control programs, this angular stroke electric actuator supports direct on-site commissioning without complex external wiring matching. Compared with the basic split type device, it shortens engineering installation cycle by 40%, reduces later maintenance difficulty, and cuts overall project matching cost for industrial automatic valve control systems.
3.Stable Dual Control Operation & Strong System Compatibility The high-integration valve actuator supports both local manual emergency operation and remote automatic control. It is perfectly compatible with mainstream PLC and DCS industrial control systems, adapting to 0°-350° adjustable rotation angles. It realizes precise on-off and regulating control for butterfly valves, ball valves and air dampers in various industrial scenarios.
4.Durable Alloy Housing & Excellent Environmental Adaptability Adopting integrally die-cast aluminum alloy shell with anti-corrosion spray treatment, this compact actuator reaches IP65 standard waterproof and dustproof grade. It stably operates in -20℃ to +60℃ working environment, resists industrial vibration, moisture and dust erosion, and suits long-term continuous operation of water treatment and HVAC automation equipment.
5.High Reliability & Maintenance-Free Long Service Life Optimized internal gear transmission structure with mechanical self-locking function prevents valve displacement caused by medium pressure. F-grade insulated motor and long-life lubricating grease ensure more than 100,000 trouble-free switching times. It greatly reduces later equipment replacement and maintenance frequency for industrial pipe network systems.
6.Wide Industrial Application & High Scene Matching As an upgraded integrated valve driving device, this electric actuator is widely applied in municipal water supply, sewage treatment, building HVAC, power plants, metallurgy and environmental protection engineering. It perfectly meets the precise and efficient automatic control demands of various angular stroke valve equipment in modern industrial automation.

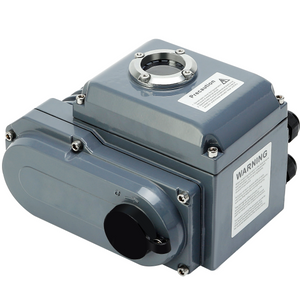

The following are common application scenarios for the HCQ Series Compact Basic Type Electric Valve Actuator：
1.Municipal water engineering, sewage disposal and pipeline automation
This compact electric valve actuator drives angular stroke valves for municipal water supply, sewage drainage, rainwater discharge and pipe network shutoff control, compatible with narrow valve pits and confined installation conditions.
2.Commercial building HVAC ventilation, smoke ventilation and building automatic control
It works with air dampers, louver valves and pipeline isolation valves in heating, ventilation and air conditioning systems, enabling remote centralized monitoring for construction automation and fire smoke exhaust systems.
3.Electric power station, new energy and thermal power auxiliary pipeline control
Applicable to power plant cooling water circuits, flue gas baffle doors and thermal system pipeline switch valves, offering reliable electric actuation for power industry fluid control systems.
4.Industrial manufacturing including metallurgy, paper making, textile printing, food processing and pharmacy
Designed for production pipeline on-off control in factory workshops, resisting dust, vibration and moisture to realize automatic pipeline medium switching and flow interception.
5.Marine ship piping system & waste gas treatment environmental protection equipment
Suits marine ship pipeline valves, cabin ventilation equipment as well as dust removal and exhaust gas treatment dampers for environmental protection machinery, supporting long-term outdoor and harsh working condition operation.
