HCQ Series

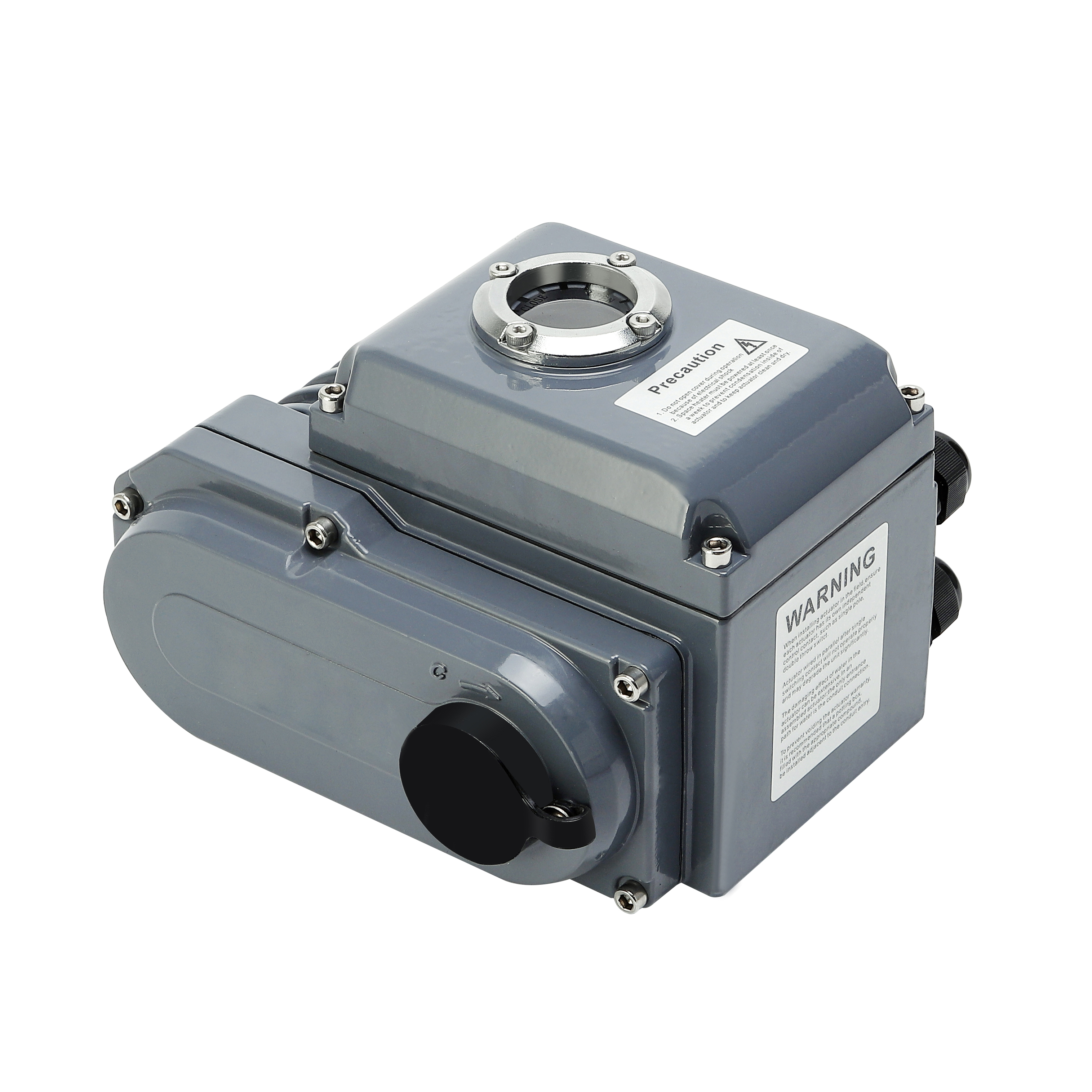

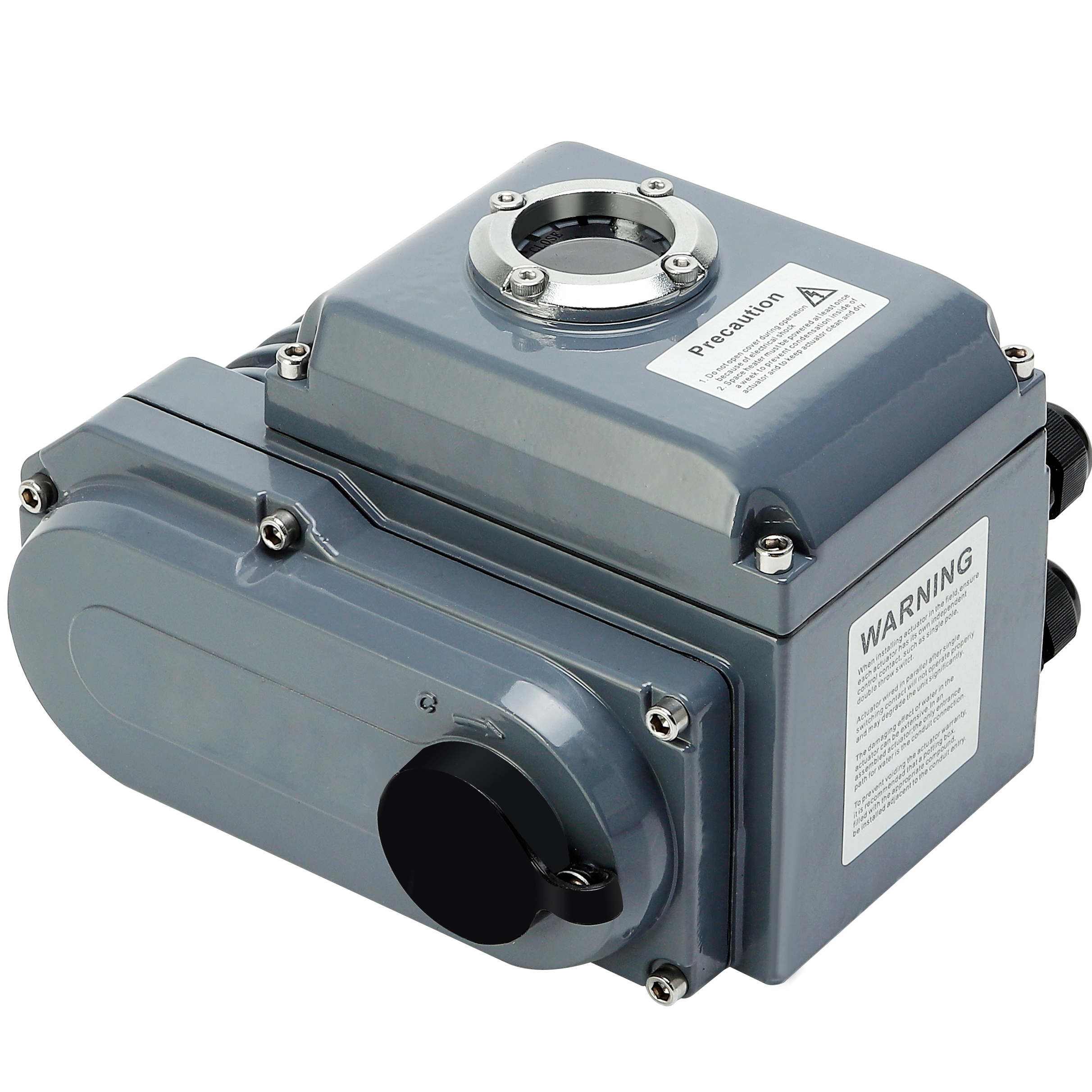

Advantages and Features of HCQ Series Compact Basic Type Electric Valve Actuator
1.The housing is integrally die-cast from aluminum alloy. Compact and lightweight with minimal space occupation, it fits confined installation spaces including pipeline shafts and valve pits. With anti-corrosion coating, the casing resists moisture and dust intrusion, boasting a sturdy mechanical structure and strong shock resistance.
2.Equipped with a transparent valve position indicator window, the current open/closed status of the valve can be directly observed without opening the cover, enabling convenient and intuitive on-site inspection.
3.An external manual knob is provided as standard. In case of power cut or electric control failure, the valve can be manually operated to realize pipeline cut-off and connection during emergency maintenance or power outage, ensuring reliable backup control of the system.

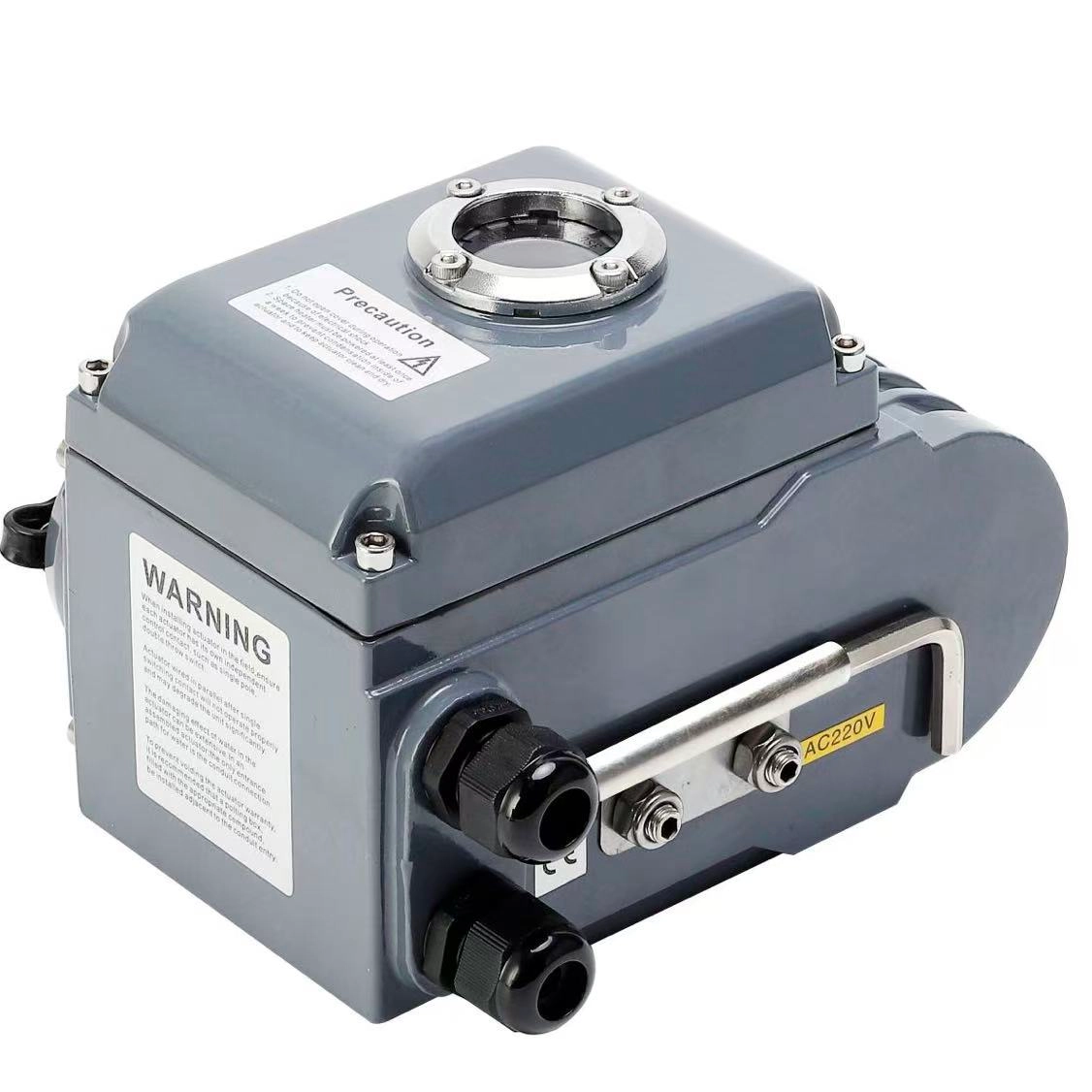

4.Two waterproof cable entry ports are configured for separate wiring of power supply and signal feedback lines to achieve standardized wiring. The ports deliver excellent waterproof and dustproof sealing after tightening.
5.This model requires an external independent control box for operation, featuring lower cost and being applicable to scenarios requiring basic on-off start-stop control.
The following are common application scenarios for the HCQ Series Compact Basic Type Electric Valve Actuator：
1.Municipal water engineering, sewage disposal and pipeline automation
This compact electric valve actuator drives angular stroke valves for municipal water supply, sewage drainage, rainwater discharge and pipe network shutoff control, compatible with narrow valve pits and confined installation conditions.
2.Commercial building HVAC ventilation, smoke ventilation and building automatic control
It works with air dampers, louver valves and pipeline isolation valves in heating, ventilation and air conditioning systems, enabling remote centralized monitoring for construction automation and fire smoke exhaust systems.
3.Electric power station, new energy and thermal power auxiliary pipeline control
Applicable to power plant cooling water circuits, flue gas baffle doors and thermal system pipeline switch valves, offering reliable electric actuation for power industry fluid control systems.
4.Industrial manufacturing including metallurgy, paper making, textile printing, food processing and pharmacy
Designed for production pipeline on-off control in factory workshops, resisting dust, vibration and moisture to realize automatic pipeline medium switching and flow interception.
5.Marine ship piping system & waste gas treatment environmental protection equipment
Suits marine ship pipeline valves, cabin ventilation equipment as well as dust removal and exhaust gas treatment dampers for environmental protection machinery, supporting long-term outdoor and harsh working condition operation.
