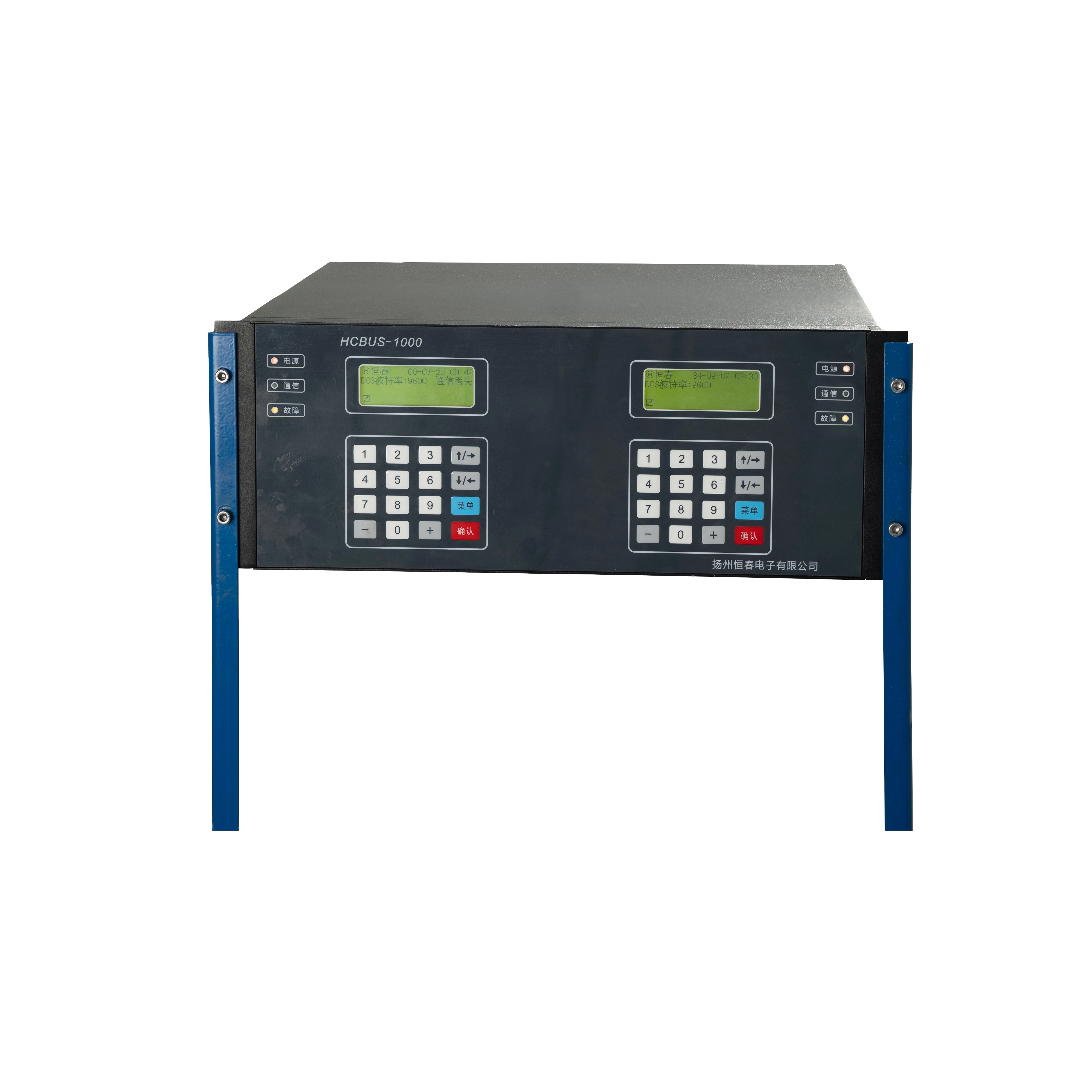

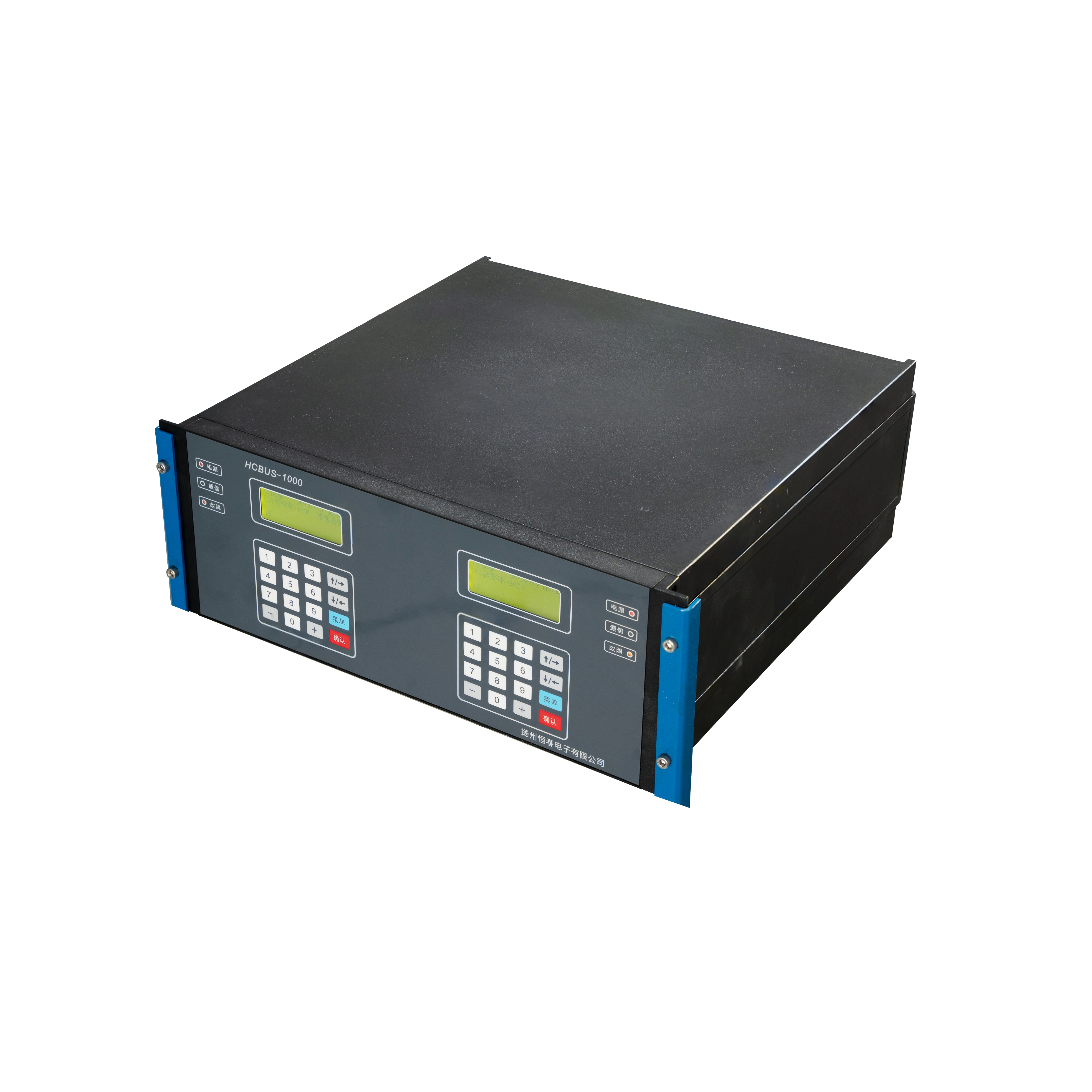

Intelligent Redundant Ring Bus Master Controller for Actuators

The Intelligent Redundant Ring Bus Master Controller for Actuators is a cutting-edge industrial fieldbus control system designed to centralize the management of fluid control networks. Engineered by a national-level "Specialized and Innovative Little Giant" enterprise, this system serves as the critical communication bridge between host computers (DCS/PLC) and field electric actuators.

By utilizing a sophisticated two-wire ring topology, this controller eliminates the need for complex point-to-point cabling found in traditional star networks. It is specifically built to provide master-slave redundant hot backup, ensuring that data transmission remains uninterrupted even in the event of a cable break or single-point failure. Whether deployed in nuclear power plants, petrochemical refineries, or long-distance pipelines, this controller guarantees the highest level of command stability and real-time monitoring.

Key Technical Features

Fail-Safe Redundant Communication

In critical industrial applications, communication loss can lead to catastrophic downtime. This controller features a dual-channel redundancy architecture. It manages data via two independent paths:

• Hot Backup Mechanism:If the primary communication line is severed or interfered with, the system seamlessly switches to the secondary channel without disturbing operation.

• Self-Diagnostics:The controller continuously monitors the health of the bus loop and automatically alerts operators to fault locations, drastically reducing maintenance response time.




High-Efficiency Ring Topology

Traditional systems require individual cables running from the control room to every single valve. Our Ring Bus Master Controller revolutionizes this by allowing up to 31 actuators per channel to be connected in a simple loop using twisted-pair cables.

• Cost Reduction:significantly lowers cabling material costs and engineering labor.

• Distance:Supports communication distances up to 1200 meters, ideal for expansive tank farms and pipelines.




Advanced Electronics & Protection

Manufactured in our state-of-the-art Electronic Workshop, the controller’s internal PCBs undergo precision SMT assembly and specialized UV coating processes. This ensures superior resistance to moisture, dust, and corrosion.

• Surge Immunity:The ports feature 4000V isolation and are tested to withstand lightning surges (20kA, 8/20 μs), meeting EMC Level IV standards.

• Extreme Durability:Rated for operation between -25℃ and 80℃, ensuring reliability in outdoor and harsh industrial environments.




Seamless Integration & Scalability

The system is built on the universally accepted Modbus RTU protocol, offering plug-and-play compatibility with major PLC brands and DCS systems via RS485 or RS232 interfaces. It supports flexible networking modes, including Series, Parallel, and Hybrid configurations, to match your facility's physical layout.

How It Works: The Ring Bus Advantage

Unlike a standard daisy-chain where a break in the middle cuts off all downstream devices, our Ring Bus Architecture creates a closed loop.

1. Normal Operation:Data flows in a primary direction to all actuators.

2. Fault Scenario:If a cable is cut between Actuator A and Actuator B, the Master Controller detects the break instantly.

3. Automatic Rerouting:The controller activates the secondary port, sending data from the "other side" of the ring. All actuators remain online and controllable, allowing maintenance teams to repair the cable without shutting down the plant.




Selection Guide by Capacity

To accommodate facilities of varying sizes, the system is modular. While the core technology remains the same, customers can select configurations based on the number of required channels:

• 2-Channel Configuration:Ideal for small-scale loops (Supports up to 62 valves).

• 4-Channel Configuration:The standard for most processing plants (Supports up to 125 valves).

• 6-Channel Configuration:High-density control (Supports up to 186 valves).

• 8-Channel Configuration:Maximum capacity for large power grids (Supports up to 248 valves).




Typical Applications

Backed by over 32 years of manufacturing excellence and global certifications (CE, ATEX, ISO), this Bus Master Controller is trusted in high-stakes sectors:

• Thermal & Nuclear Power:Precise control of dampers and cooling loops.

• Oil & Gas Transmission:Long-distance monitoring of pipeline valves.

• Water Treatment:Centralized management of distributed sluice gates.

• Chemical Processing:Safe, redundant control in hazardous zones




FAQ

Q: Can this controller work with non-Hengchun actuators?

A: Yes, as long as the actuators support the standard Modbus RTU protocol and RS485 physical layer, they can be integrated into our ring network. However, pairing with Hengchun Intelligent Electric Actuators ensures optimal performance and easier commissioning.

Q: What cable type is recommended

A: We recommend high-quality twisted pair shielded cables to maximize interference immunity and achieve the full 1200m communication distance.

Q: Is the system compatible with Industry 4.0 standards?

A: Absolutely. By digitizing valve data and enabling remote diagnostics, this controller is a key component in modernizing plants for the Industrial Internet of Things (IIoT).
