Which actuator delivers better performance for your industrial application? The answer depends on force, precision, and operating conditions. Electro hydraulic actuators provide powerful motion, while electric actuators offer clean, efficient operation.
This guide compares their performance, costs, maintenance, and applications to help you choose.
Electro hydraulic actuators combine several key parts into one compact unit. The motor, often an electric servo motor, converts electrical energy into mechanical rotation. This rotation drives the hydraulic pump inside the hydraulic unit. The pump pressurizes hydraulic fluid, which flows to the actuator. The actuator itself can be a hydraulic cylinder for linear motion or a hydraulic motor for rotary motion. A control system manages the motor speed and pump output, while sensors provide feedback on position, pressure, and flow.
When the actuator receives an electrical command, the control system signals the motor to start turning. The motor spins the hydraulic pump, building pressure in the hydraulic fluid. This pressurized fluid moves into the actuator. For linear actuators, the fluid pushes the piston inside the cylinder, creating straight-line movement. For rotary actuators, hydraulic motors convert fluid pressure into rotational torque. The system adjusts flow and pressure dynamically, allowing precise control of speed and force.
Electro hydraulic actuators use closed-loop control to ensure accuracy. Sensors continuously monitor the actuator’s position, pressure, and speed. The control system compares this data to the desired setpoint. If the actuator is off position, the controller changes motor speed or pump displacement to correct it. This feedback loop maintains smooth, precise movement and fast response. It also helps reduce energy consumption by stopping the pump when the position is reached, locking the actuator in place hydraulically without wasting power.
Electro hydraulic actuators come mainly in two types:

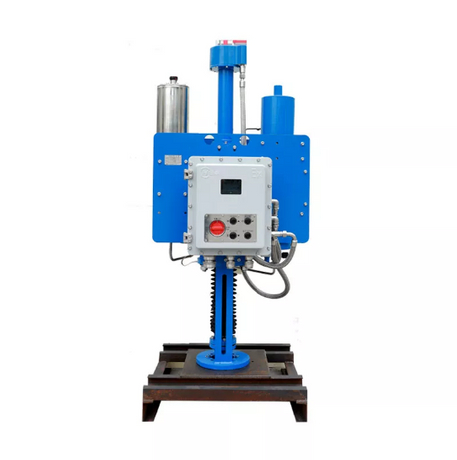

Linear Actuators: Use hydraulic cylinders to push or pull loads in a straight line. Ideal for applications needing strong thrust or long strokes, such as valve stems or heavy lifting.

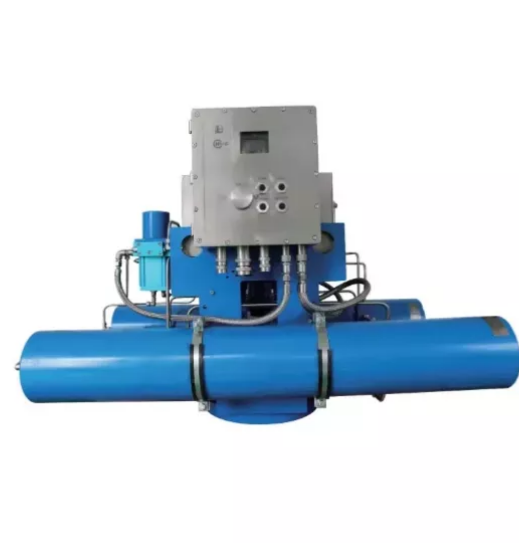

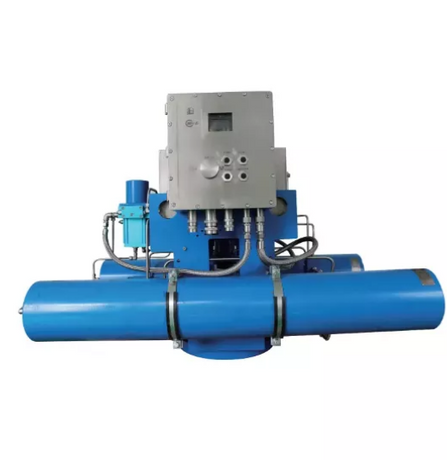

Rotary Actuators: Use hydraulic motors or mechanisms converting linear motion to rotation. They provide high torque for turning valves, dampers, or rotating machinery parts.
Both types benefit from the integrated motor-pump design, which reduces installation complexity and improves reliability.
Electric actuators convert electrical energy into mechanical motion to operate valves or other mechanical devices. They typically use an electric motor that spins and transfers torque through gears to create either rotary or linear movement. When a control system sends an electrical signal, the actuator moves the valve to the desired position precisely. Built-in limit switches and position sensors provide feedback, ensuring accurate control and preventing over-travel. Manual overrides allow safe operation during power outages or maintenance.
Compared to hydraulic or pneumatic actuators, electric actuators offer clean, quiet operation and consume power only during movement. Their fewer moving parts reduce maintenance needs. They are ideal for indoor or sensitive environments where fluid leaks or noise are concerns.
Electric actuators come in various types to suit different valve and application needs:
Quarter-Turn Actuators: Rotate valves 0–90°, perfect for ball, butterfly, and plug valves. They provide quick, precise on/off or modulating control.
Linear Actuators: Deliver straight-line push or pull motion. Used for gate, globe, or other linear-motion valves requiring precise positioning.
Spring-Return Actuators: Include a mechanical spring that automatically moves the valve to a safe position during power loss. Critical for fail-safe applications like fire safety or emergency shutdowns.
Multi-Turn Actuators: Provide continuous rotation for valves requiring multiple turns, such as large gate valves or sluice gates.
Explosion-Proof Actuators: Designed with rugged enclosures to prevent ignition in hazardous environments with flammable gases or dust. Essential in oil, gas, chemical industries.
Electric actuators consist mainly of:
Electric Motor: The power source that generates rotational force.
Gearbox: Amplifies torque and adjusts speed to match valve requirements.
Position Sensors: Provide feedback on valve position for precise control.
Limit Switches: Prevent over-rotation by stopping the motor at set positions.
Control Electronics: Receive commands from PLCs or control systems and manage motor operation accordingly.
Many modern actuators include digital communication interfaces for seamless integration into automation or IoT systems. Some models offer programmable settings for speed, torque, and position, enhancing flexibility.
Electric actuators are widely used across industries requiring precise, reliable valve control:
Oil & Gas: Control isolation and modulating valves in pipelines and refineries.
Water & Wastewater Treatment: Automate flow regulation in purification and recycling systems.
Power Generation: Manage valves in boilers, turbines, and cooling systems.
HVAC & Building Automation: Regulate heating, ventilation, and cooling valves for energy efficiency.
Chemical & Pharmaceutical: Ensure leak-free, precise control in sensitive processing lines.
Food & Beverage: Maintain hygienic and accurate flow control.
Mining & Environmental: Operate valves in harsh or explosive environments.
Their clean operation and low maintenance make them ideal for indoor and sensitive settings, while explosion-proof models ensure safety in hazardous zones.
The following table compares electro hydraulic actuators and electric actuators based on their structure, energy efficiency, maintenance, control accuracy, and industrial applications.
Comparison Factor | Electro Hydraulic Actuators | Electric Actuators |
|---|---|---|
Structure and Components | Integrate an electric motor, hydraulic pump, reservoir, actuator, and control system into one unit. | Consist mainly of an electric motor, gearbox, position sensors, and control electronics. |
System Integration | Self-contained design eliminates external hydraulic power units and complex piping. | Simple structure, but high-torque or fail-safe applications may require additional components. |
Power Source | Use electricity to generate hydraulic pressure for motion. | Convert electrical energy directly into mechanical motion. |
Energy Efficiency | Demand-based operation reduces idle power consumption. Can save up to 80% energy compared with traditional hydraulic systems under certain conditions. | Highly efficient during normal operation, but high-force applications may require larger motors. |
Installation | Require only electrical power and control connections, simplifying installation. | Require straightforward mounting and electrical wiring. |
Maintenance | Need periodic hydraulic oil and seal inspections. Integrated construction reduces external leak points. | Require minimal maintenance, mainly gearbox lubrication and occasional sensor calibration. |
Control Accuracy | Provide precise positioning through closed-loop control, pressure sensors, and proportional valves. | Offer accurate positioning through sensors, limit switches, and digital controllers. |
Force and Torque | Deliver high thrust and torque with excellent power density. | Suitable for moderate loads, although specialized models can handle higher forces. |
Response and Speed Control | Support fast responses and smooth adjustments of force and speed. | Provide reliable motion control but may offer less flexibility in heavy-duty force regulation. |
Fail-Safe Capability | Can support hydraulic locking and fail-safe functions through suitable system designs. | May require additional brakes, springs, or backup systems for fail-safe operation. |
Environmental Impact | Contain hydraulic fluid, requiring proper sealing and maintenance to prevent leaks. | Operate without hydraulic oil, reducing fluid-related environmental risks. |
Industrial Applications | Common in oil and gas, marine, heavy machinery, and aerospace industries. | Widely used in water treatment, HVAC, chemical processing, and food and beverage industries. |
Best Suited For | High-force, heavy-duty applications requiring precise control and reliable operation in harsh environments. | Clean, quiet applications prioritizing simple installation, energy efficiency, and low maintenance. |
Electro hydraulic actuators provide precise control over position and force. Thanks to advanced sensors and closed-loop feedback, they keep movements accurate, often within micrometers. This precision suits applications demanding exact valve positioning or load handling. Their hydraulic power allows strong output capacity in a compact size, delivering high thrust or torque beyond what many electric actuators can manage. This makes them ideal for heavy-duty tasks where space is limited but power is critical.
Unlike traditional hydraulic systems running pumps continuously, electro hydraulic actuators operate pumps and motors only when needed. This demand-based approach saves significant energy, as the system shuts off once the actuator reaches its target position. The hydraulic fluid then locks the actuator hydraulically, maintaining position without power use. This efficient cycle reduces electricity consumption and lowers operating costs, especially in processes with frequent start-stop actions.
The integrated motor-pump design shortens transmission paths, enabling near real-time response. Electro hydraulic actuators adjust output force and position within milliseconds, ideal for dynamic industrial processes requiring quick, smooth movements. Closed-loop control continuously monitors position, pressure, and flow, adjusting hydraulic output instantly to maintain stability. This rapid feedback loop prevents overshoot and ensures consistent performance even under changing loads.
Self-contained construction simplifies installation. The actuator combines motor, hydraulic pump, fluid reservoir, actuator, and control electronics in one unit. This eliminates external hydraulic power units, long piping runs, and multiple leak points. Installation requires only power and control wiring, reducing setup time and complexity. Maintenance is easier too, with fewer connections and sealed hydraulic circuits minimizing leaks. Routine checks focus on hydraulic fluid condition and seals, lowering downtime and service costs.
Electro hydraulic actuators withstand tough conditions like extreme temperatures, vibration, dust, and moisture. Their sealed design protects internal components from contaminants and corrosion. Hydraulic locking ensures valves or machinery stay securely positioned even during power failure, providing fail-safe operation. This reliability suits offshore platforms, oil and gas facilities, marine environments, and heavy industrial sites where safety and durability are paramount.
Tip: Choose electro hydraulic actuators for applications needing high power, precise control, and energy-efficient operation in demanding environments to maximize performance and reduce costs.
Electro hydraulic actuators play a vital role in controlling large valves in oil, gas, and chemical plants. They provide the high force needed to operate heavy ball, butterfly, and globe valves reliably. Their precise positioning helps regulate flow and pressure accurately, ensuring safe, efficient process control. The integrated design reduces external hydraulic lines, minimizing leak risks and simplifying installation, even in hazardous or remote areas. These actuators support automated valve operation and remote monitoring, essential for modern industrial automation.
Marine environments demand equipment that withstands harsh conditions like salt spray, vibration, and temperature extremes. Electro hydraulic actuators fit this need perfectly. Their sealed, compact construction resists corrosion and contamination. They deliver strong torque for steering gear, hatch covers, deck machinery, and thrusters. Their fast response and fail-safe locking ensure safety during critical operations at sea or on offshore platforms. The self-contained design simplifies maintenance and reduces the risk of hydraulic leaks that could harm the environment.
Heavy equipment such as cranes, excavators, and presses require actuators that deliver powerful, reliable motion control. Electro hydraulic actuators provide the necessary thrust and torque in a compact form, handling impact loads and frequent start-stop cycles smoothly. In automated production lines, they offer programmable force and speed control for stamping, forming, or assembly tasks. Their fast response and precise closed-loop control improve throughput and product quality. Integration with control systems enables real-time adjustments, enhancing automation efficiency.
Electro hydraulic actuators find use in medical devices like adjustable hospital beds, where smooth, quiet, and precise movement improves patient comfort. In agriculture, they operate harvesters and planting machinery exposed to mud, moisture, and corrosive chemicals. Their robust design ensures long service life and reliable performance in these tough environments. Forklifts benefit from actuators providing stable, high-capacity lifting with accurate positioning, crucial for safety and efficiency in material handling. The energy-efficient operation extends battery life in electric forklifts.
The aerospace industry demands actuators with high power density, reliability, and rapid response. Electro hydraulic actuators meet these standards in flight control surfaces, landing gear, and other critical systems. Their integrated design reduces hydraulic plumbing complexity, lowering weight and potential leak points. Precise closed-loop control enables accurate positioning essential for flight safety and performance. The ability to maintain position under power loss enhances fail-safe operation, a top priority in aerospace applications.
Tip: When deploying electro hydraulic actuators, match actuator specifications to your environment and load requirements to ensure optimal performance and longevity.
When deciding between electro hydraulic and electric actuators, start by evaluating your application's mechanical demands. Electro hydraulic actuators excel in delivering high torque and thrust, making them ideal for heavy-duty tasks or long strokes. If your application involves large valves or heavy machinery requiring powerful force, electro hydraulic actuators provide compact, robust solutions.
Electric actuators fit better in scenarios with moderate torque or thrust needs. They shine in clean, indoor environments where noise and fluid leaks must be minimized. Consider the environment carefully: electro hydraulic actuators tolerate harsh conditions like dust, moisture, and temperature extremes better due to their sealed design and hydraulic locking. Electric actuators, although reliable, may need additional protection or explosion-proof models in hazardous zones.
Cost plays a major role. Electric actuators generally have lower upfront and maintenance costs due to simpler construction and fewer moving parts. They consume power only during motion, which keeps energy use low for many applications.
Electro hydraulic actuators often cost more initially because of integrated hydraulic components but can save energy in high-force or frequent operation cases through demand-based pump control. Their ability to lock hydraulically without power reduces energy consumption over time, especially in heavy industrial settings.
Both actuator types support integration with modern control systems, but differences exist. Electro hydraulic actuators usually come with advanced closed-loop feedback systems that monitor position, pressure, and flow. They can handle complex control algorithms for precise force and speed adjustments.
Electric actuators provide accurate position feedback and support digital communication protocols like Modbus or Profibus. They integrate smoothly into PLCs and automation networks, especially in applications requiring clean signals and straightforward control.
Maintenance needs differ. Electro hydraulic actuators require periodic checks of hydraulic fluid condition, seals, and potential leak points, though their self-contained design reduces external plumbing failures. Proper maintenance ensures long-term reliability even in tough environments.
Electric actuators need less routine maintenance, mainly involving gear lubrication and sensor calibration. Their simpler design reduces downtime risk, but they may be less tolerant to extreme environmental stresses without additional protection.
Safety is crucial. Electro hydraulic actuators often include hydraulic locking, which holds valves or machinery securely during power loss, providing a fail-safe advantage in critical applications. Some models also feature spring-return mechanisms for emergency positioning.
Electric actuators may rely on spring-return designs or battery backups for fail-safe operation. Explosion-proof electric actuators are essential in flammable or dusty environments. Evaluate your safety needs carefully to choose an actuator that meets fail-safe and compliance standards.
Electro hydraulic actuators are evolving to become smart devices connected to IIoT networks. By embedding sensors and communication modules, they can transmit real-time data on position, pressure, temperature, and operational status. This connectivity enables remote monitoring and control, predictive maintenance, and data analytics to optimize performance and reduce downtime. For example, operators can detect early signs of wear or leaks before failures occur, improving reliability and safety.
Modern electro hydraulic actuators increasingly incorporate advanced control algorithms and onboard diagnostics. Intelligent controllers use adaptive feedback loops that adjust motor speed and hydraulic flow dynamically for optimal force and speed. Diagnostics systems analyze sensor data continuously to identify anomalies or inefficiencies. This smart control improves precision, responsiveness, and energy efficiency. It also simplifies troubleshooting by providing clear fault codes and maintenance alerts, reducing service time and costs.
Energy conservation remains a top priority in actuator design. Innovations focus on reducing power consumption during both operation and standby. Variable displacement pumps and high-efficiency servo motors minimize energy losses by matching output exactly to load demands. Hydraulic circuits incorporate better sealing materials and low-friction components to reduce leakage and wear. Some designs use energy recovery techniques, capturing hydraulic energy during deceleration or load changes to reuse later. These improvements lower operating costs and environmental impact.
Manufacturers are developing electro hydraulic actuators tailored to specific industries and applications. Customization includes adjusting size, force capacity, speed, and control interfaces to fit unique requirements. For example, marine actuators may have enhanced corrosion resistance and vibration damping. Aerospace units prioritize weight reduction and fail-safe features. Agricultural models focus on durability in harsh environments. This trend toward specialized solutions helps users achieve better performance, longer service life, and easier integration into existing systems.
Electro hydraulic and electric actuators each offer unique benefits for industrial automation. Electro hydraulic actuators provide high force, precise control, and energy efficiency, ideal for heavy-duty tasks. Electric actuators suit moderate torque needs with clean, quiet operation. Selecting the right actuator depends on force requirements, environment, and control complexity. Electro hydraulic actuators play a vital role in modern automation with advanced control and energy-saving features. Consult experts for tailored solutions to maximize performance and reliability. Yangzhou Hengchun Electronics Co., Ltd. delivers quality products that enhance efficiency and durability.
A: Electro hydraulic actuators combine an electric motor and hydraulic pump to convert electrical energy into precise hydraulic motion, using sensors and closed-loop control for accurate positioning.
A: Electro hydraulic actuators provide higher force and fast response, ideal for heavy-duty tasks and harsh environments, while electric actuators suit moderate torque needs and cleaner settings.
A: Electro hydraulic actuators save energy by running pumps only when needed and hydraulically locking positions without power, reducing consumption compared to traditional hydraulic systems.
A: They need periodic checks of hydraulic fluid, seals, and sensors, but their integrated design minimizes leak risks and simplifies upkeep compared to separate hydraulic setups.
A: Electro hydraulic actuators often have higher initial costs but offer energy savings and durability for demanding applications, while electric actuators generally cost less upfront and need less maintenance.
